Mobile LED Balloon Light Towers

60–1400 W

Lamp Options

Up to 224,000 lm

Light Output

360°

Soft Illumination

IP54

Lamp Protection

Wide-area illumination with soft, even light and reduced glare.

Mobile deployment with the lamp, mast and matched power supply on one cart.

Off-grid power using a portable power station or gasoline generator.

Flexible selection with standard options or a custom configuration.

Standard Options & Custom Configurations

3 Standard Carts

Cart-S / Cart-M / Cart-L

Power Options

Power station / generator

Custom Cart

Dimensions & structure

Lamp & Mast

Lamp output & mast layout

Matched Power

Output, capacity & runtime

Color & Logo

Brand customization

WhatsApp Inquiry
Email Inquiry
Certifications
Internationally Certified
Ready Stock Available
Custom Options Supported
Fast Sampling Service
OEM / ODM Customization
Express Sampling Service
Product Details

Product Overview

Mobile LED Balloon Light Towers

Mobile LED Balloon Light Towers

HUIVOLT mobile LED balloon light towers combine an inflatable LED light head, adjustable mast and wheeled cart with a compatible portable power station or gasoline generator. They provide temporary area lighting for changing locations and sites without convenient mains electricity, including outdoor events, maintenance operations, public spaces and emergency response.

Mobile Cart Design for Easy Relocation

The wheeled cart carries the light, mast and selected power source together, reducing separate handling during relocation. Swivel wheels assist steering, while brakes help hold the cart in position. Stabilizer legs are available on selected configurations to provide additional support during use.

360° Diffused Lighting and Outdoor Protection

An elevated balloon diffuser spreads white light around the system to illuminate surrounding activity areas with reduced glare. Dimmable output adapts to different tasks. The LED lamp features IP54 protection, flame-retardant, tear-resistant balloon fabric and a removable dust and insect filter. A quick-connect power cable detaches from the lamp for convenient connection and packing.

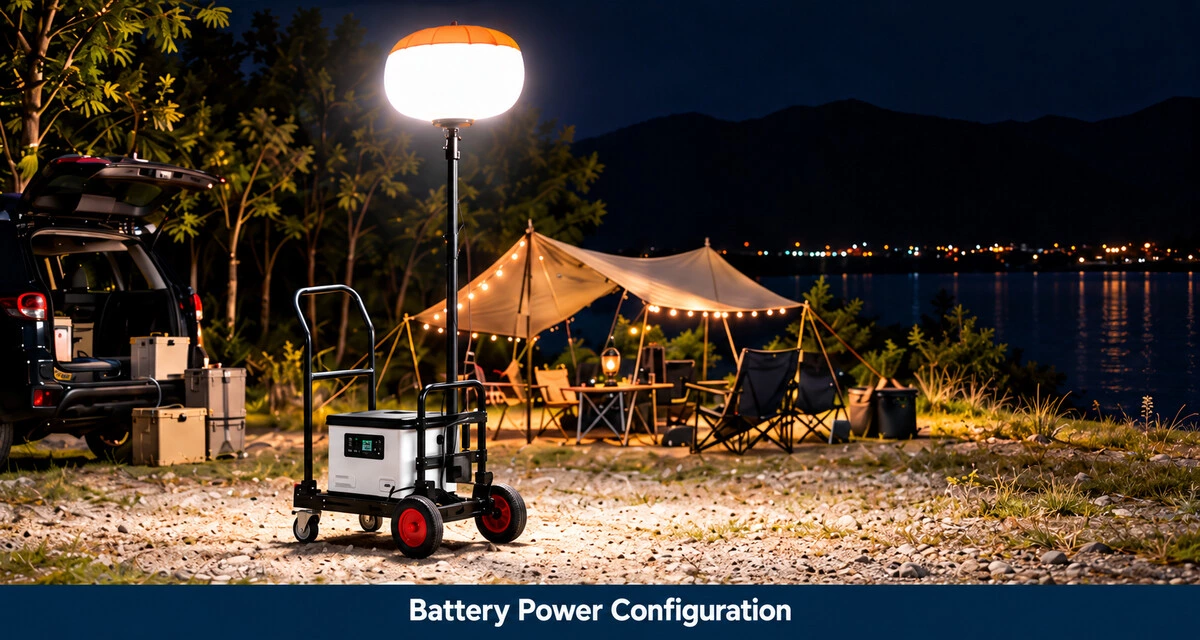

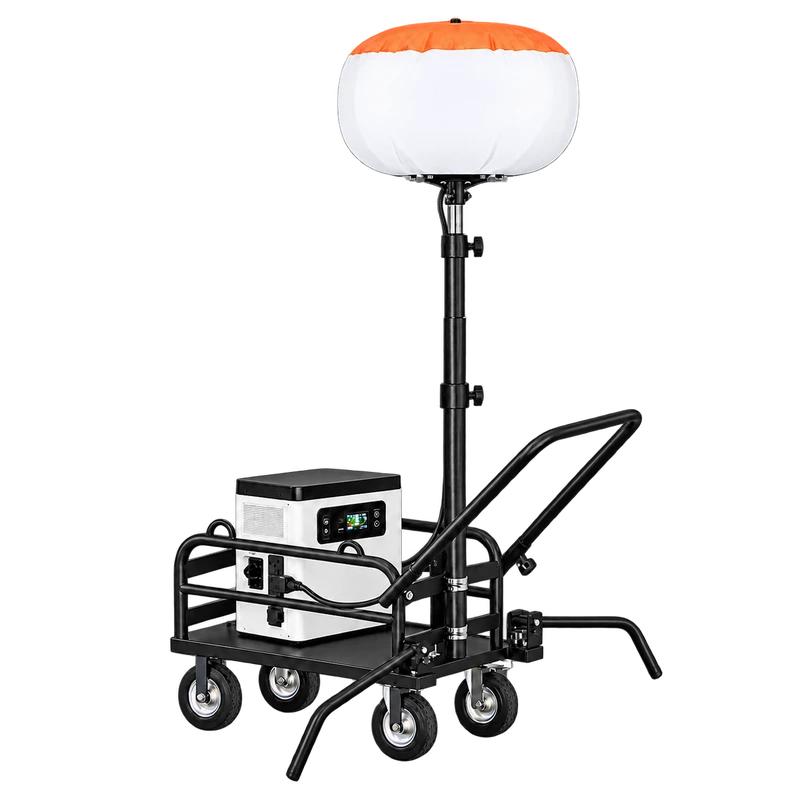

Battery-Powered Balloon Lights

A compatible portable power station provides rechargeable power without fuel handling or exhaust at the point of use. This configuration suits locations where engine noise is undesirable and charging can be planned between uses. Battery capacity and continuous AC output are matched to the selected lamp.

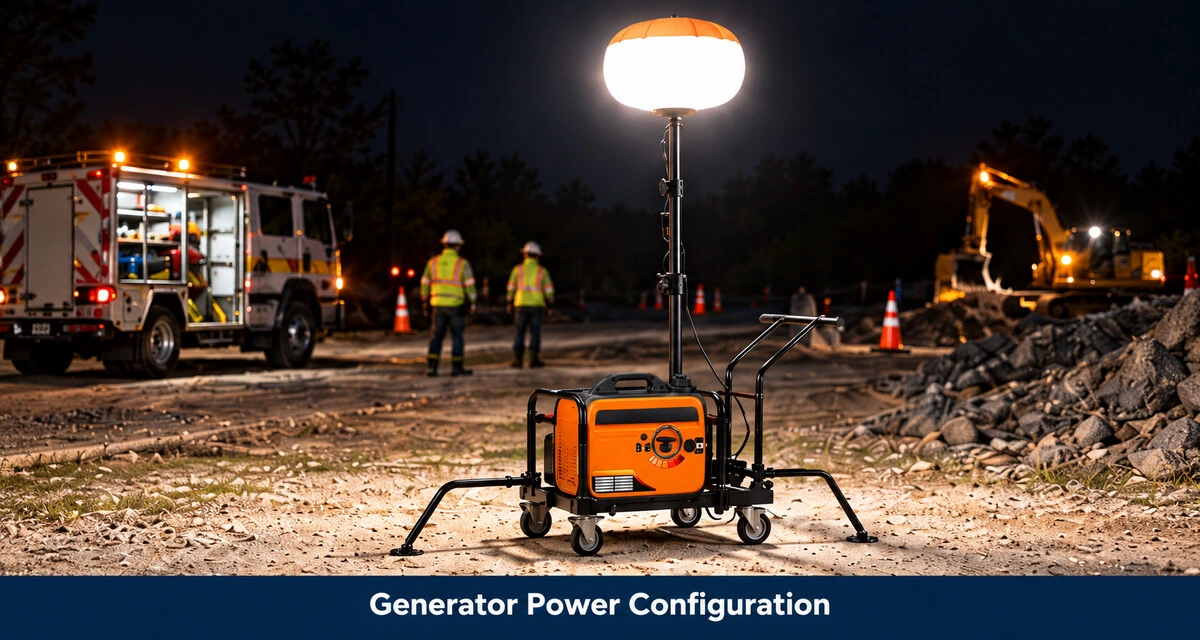

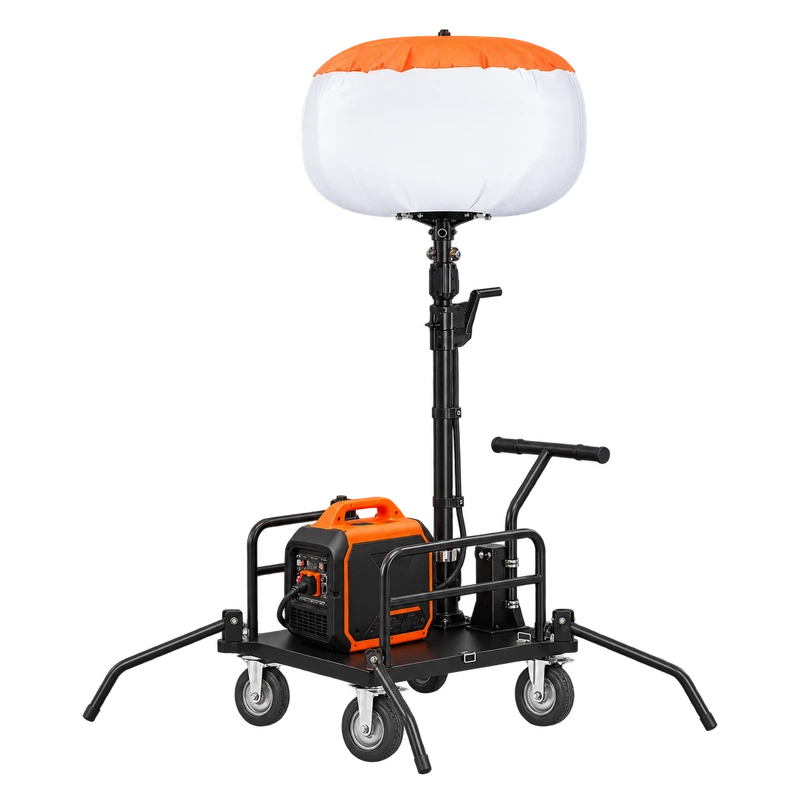

Generator-Powered Balloon Lights

A gasoline generator supplies lighting power where mains electricity is unavailable and battery charging is impractical. This option supports extended outdoor operations when fuel supplies are accessible. Generator rating is matched to the total load, with fuel consumption and tank capacity used to plan operating time.

Custom Carts and Power Matched to Your Needs

Choose Cart-S, Cart-M or Cart-L, or request custom dimensions, frame layout, mast configuration, color and branding. HUIVOLT matches the power setup to lamp wattage, required working hours and site conditions, accounting for conversion losses and additional loads. The LED balloon light is supplied with a five-year warranty.

Product Specifications

Tripod LED Flood Light Specifications

Compare modular floodlight specifications and tripod height and load options.

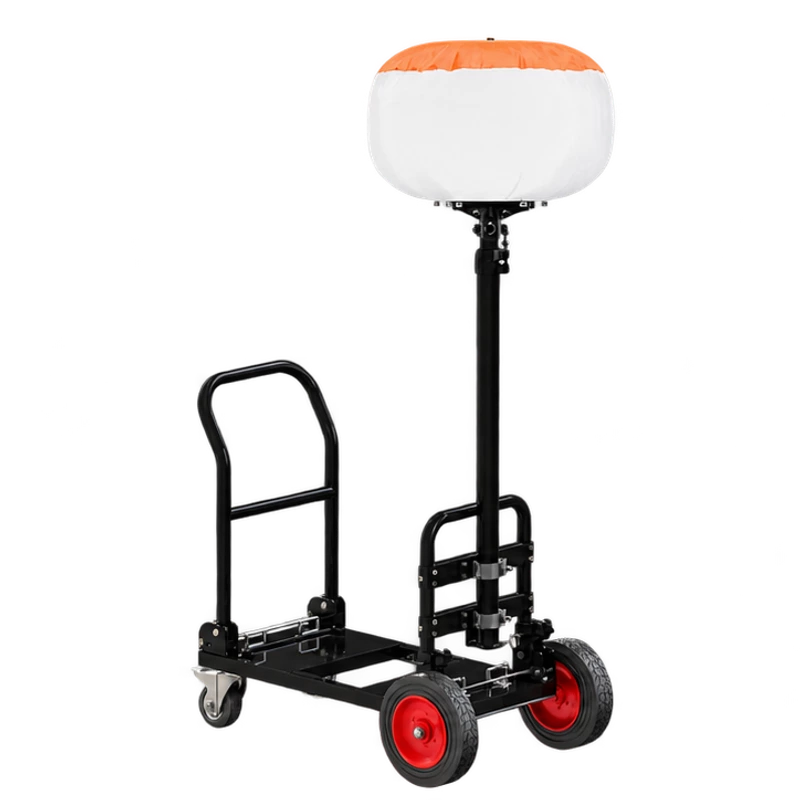

Cart-S

Cart-S
Recommended Lamp Power
60–320 W
Max. Height Net Weight
2,367 mm 16 kg
Compatible lamps Air-XS / Air-S
Cart body (mm) 780 × 438 × 786
Deployed (mm) Not listed
Package (mm) 780 × 460 × 350
Cart structure Folding platform
Mobility Wheels with brakes

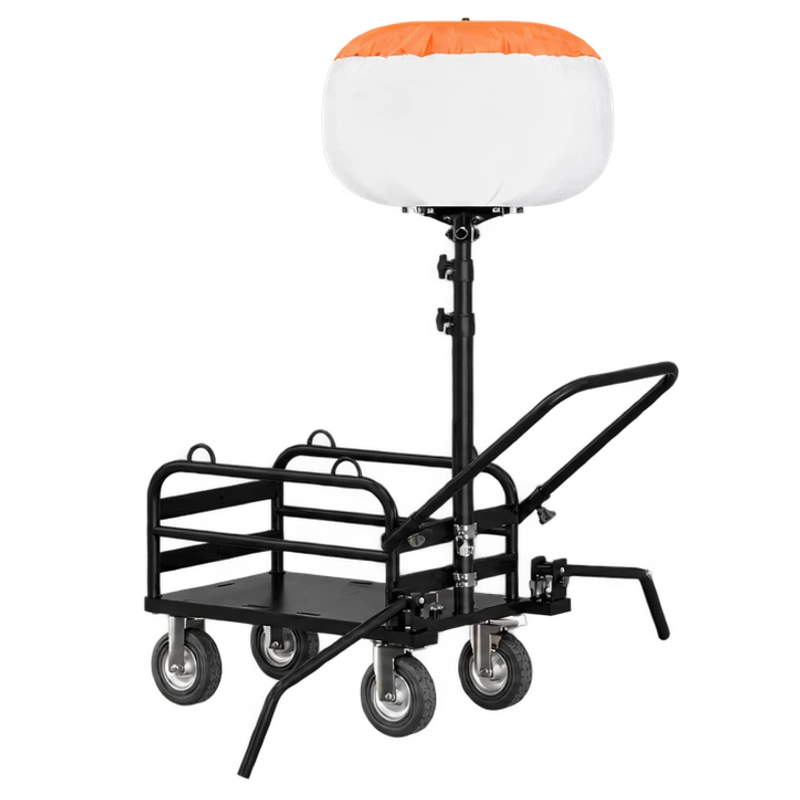

Cart-M

Cart-M
Recommended Lamp Power
320–600 W
Max. Height Net Weight
3,360 mm 28.5 kg
Compatible lamps Air-S / Air-M
Cart body (mm) 745 × 545 × 563
Deployed (mm) 1,568 × 1,103 × 3,360
Package (mm) 800 × 620 × 580
Cart structure Basket frame
Mobility Braked wheels + stabilizers

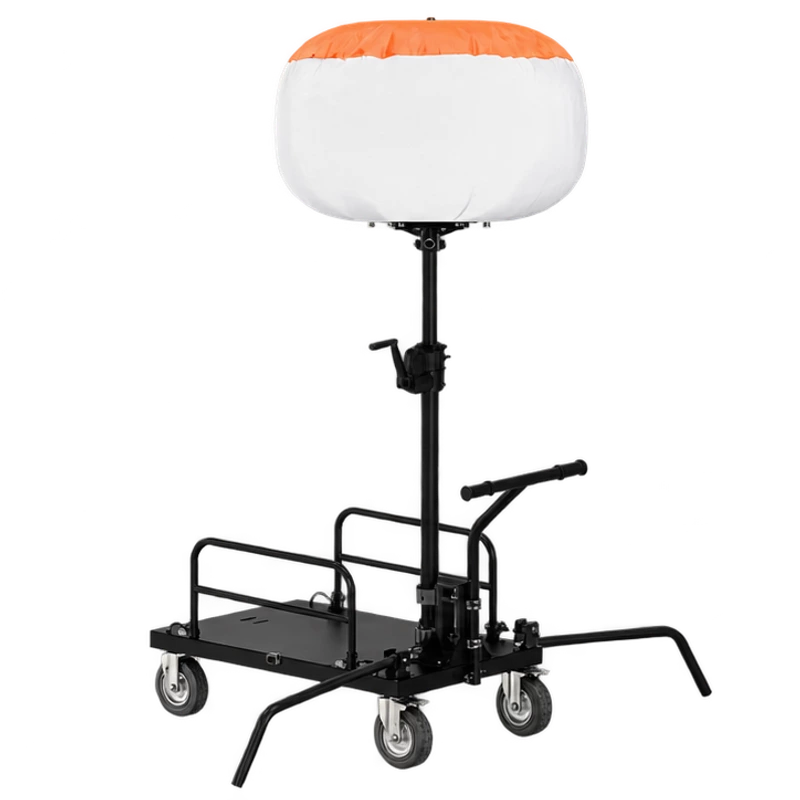

Cart-L

Cart-L
Recommended Lamp Power
700–1,400 W
Max. Height Net Weight
4,145 mm 48 kg
Compatible lamps Air-L / Air-XL / Air-MAX
Cart body (mm) 1,255 × 630 × 618
Deployed (mm) 2,026 × 1,710 × 4,145
Package (mm) 1,100 × 720 × 570
Cart structure Open platform
Mobility Braked wheels + stabilizers

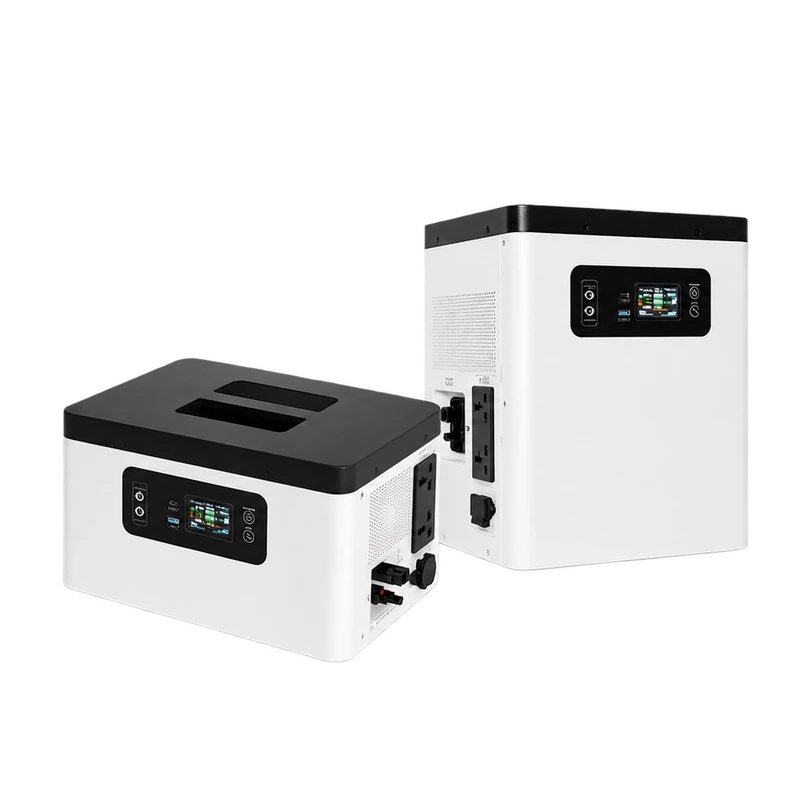

Power Stations

Power Stations
Catalog Reference Models
HV-PS-S / HV-PS-M
Max. AC Output Capacity
300 / 1,000 W 1,000 / 2,000 Wh
Model HV-PS-S HV-PS-M
Max. AC output 300 W 1,000 W
Capacity 1,000 Wh 2,000 Wh
Net weight 11 kg 23 kg
Size (mm) 400 × 274 × 252 345 × 310 × 430

Other output and capacity options can be selected for your lamp load.

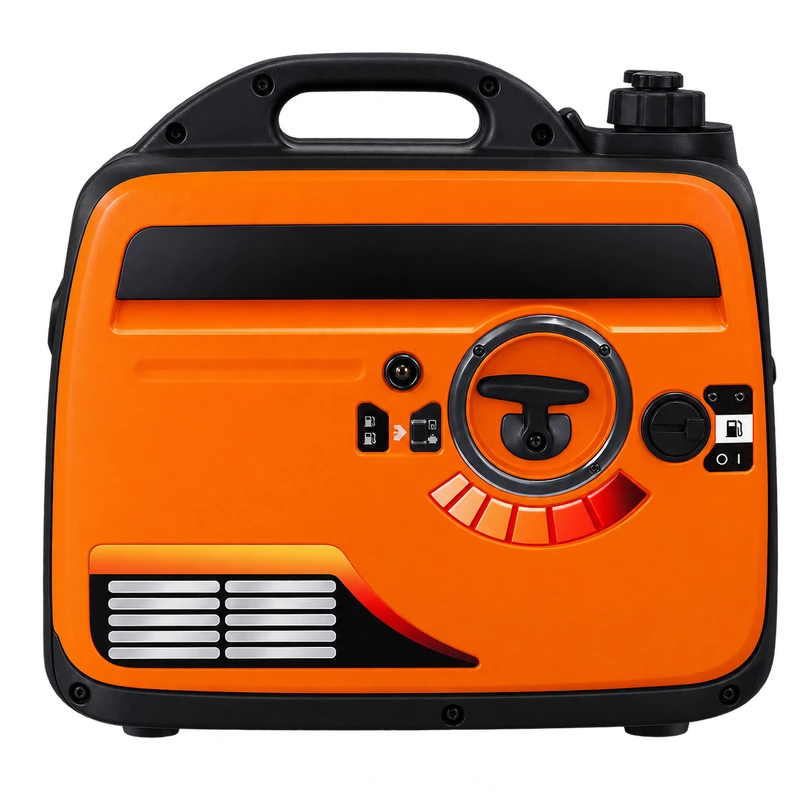

Gasoline Generator

Gasoline Generator
Standard Reference Model
HV-GG2200
Rated Output Max. Output
2.2 kW 2.5 kW
Rated voltage (opt.) 230 V
Frequency (opt.) 50 Hz
Rated current 9.6 A
Engine / displacement 152F / 98 cc
Fuel tank 4.2 L
Start options Manual / Electric / Remote
Product size (mm) 510 × 280 × 455
Package size (mm) 510 × 280 × 455
Gross weight 23 kg

Need help selecting a tripod? Share your lamp model and preferred working height with us.

Stand heights exclude the lamp head. Product images are shown at different scales.

Why Choose Mobile LED Balloon Light Towers LED Balloon Lights?

Built for construction, roadwork and emergency response.

Move Everything Together

Move Everything Together

Carry the lamp, mast andselected power source on
one wheeled cart.

Battery Power Option

Battery Power Option

Rechargeable power withoutfuel handling or exhaust fromthe power source.

Generator Power Option

Generator Power Option

Support extended outdoor workwhere mains power and batterycharging are impractical

Power Matched to Your Lamp

Power Matched to Your Lamp

Match power output and capacityto lamp wattage and required
working hours.

Easy Swivel Steering

Easy Swivel Steering

Swivel wheels help steer the cartbetween work areas withess handling.

Brake-Equipped Wheels

Brake-Equipped Wheels

Wheel brakes help hold the cartin position during setup and use

Stabilizing Support Legs

Stabilizing Support Legs

Available extendable support legsprovide a steadier base duringstationary operation.

Adjustable Mast Height

Adjustable Mast Height

Position the balloon light abovethe work area using theadjustable mast.

Quick-Disconnect Cable

Quick-Disconnect Cable

Detach the quick-connect powercable for easier connection,packing and transport.

Three Cart Sizes

Three Cart Sizes

Choose Cart-S, Cart-M or Cart-Lto suit your equipment and site.

Custom Cart Configuration

Custom Cart Configuration

Customize frame dimensionsnast layout, cart color andbranding for your market.

Five-Year Warranty

Five-Year Warranty

Cover for non-user-caused faults,with replacement parts or lampsafter assessment.

PROJECT GALLERY

HUIVOLT Lighting in Action

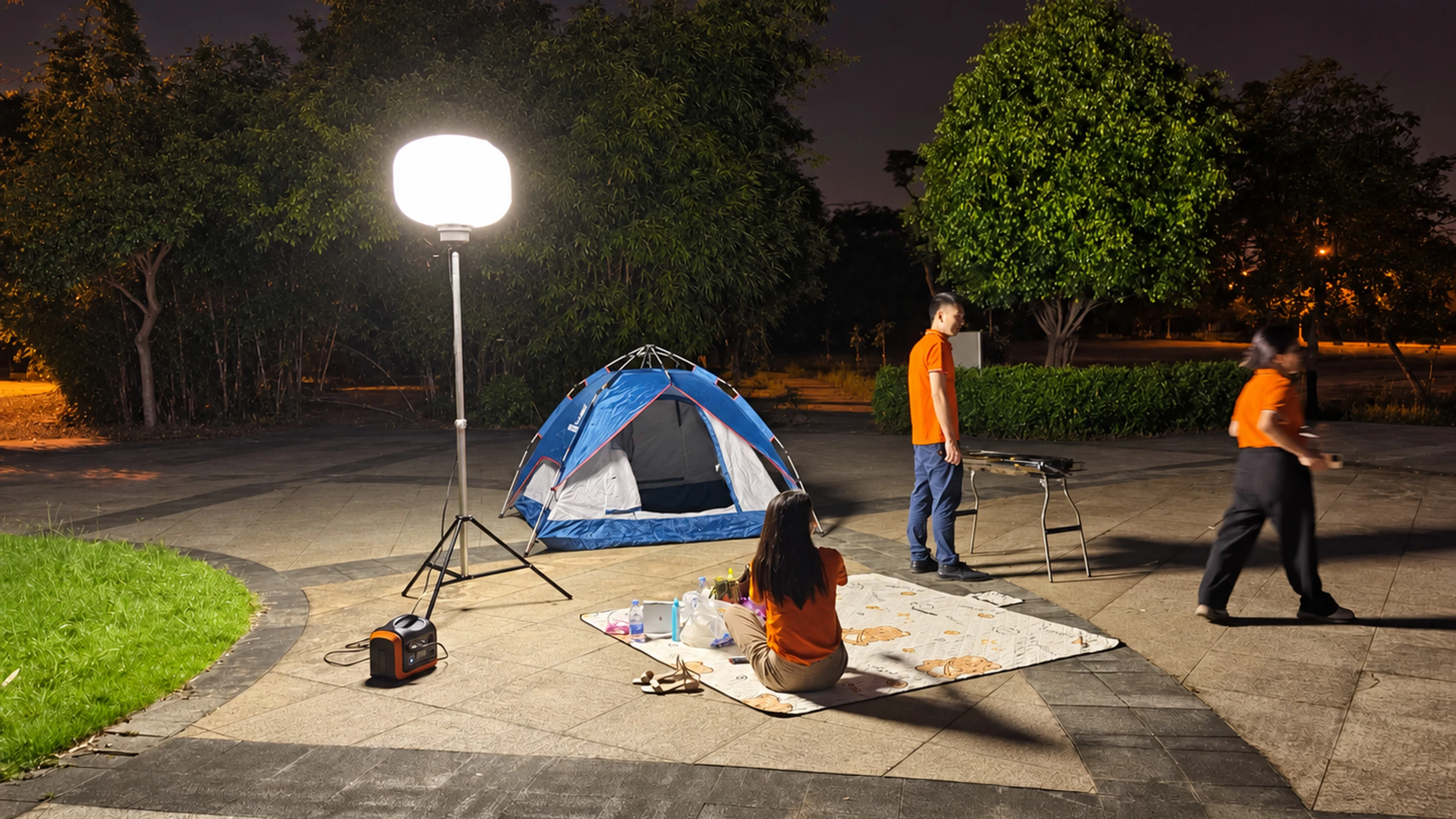

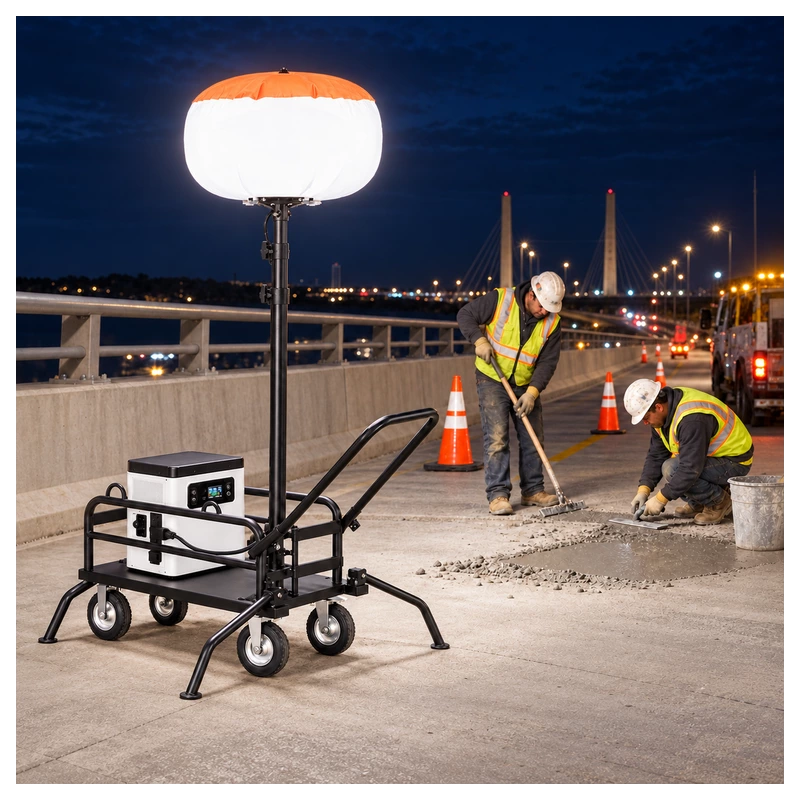

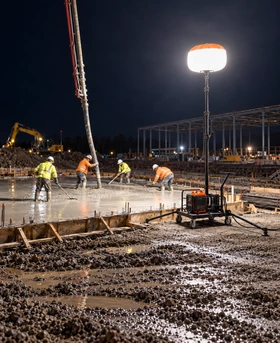

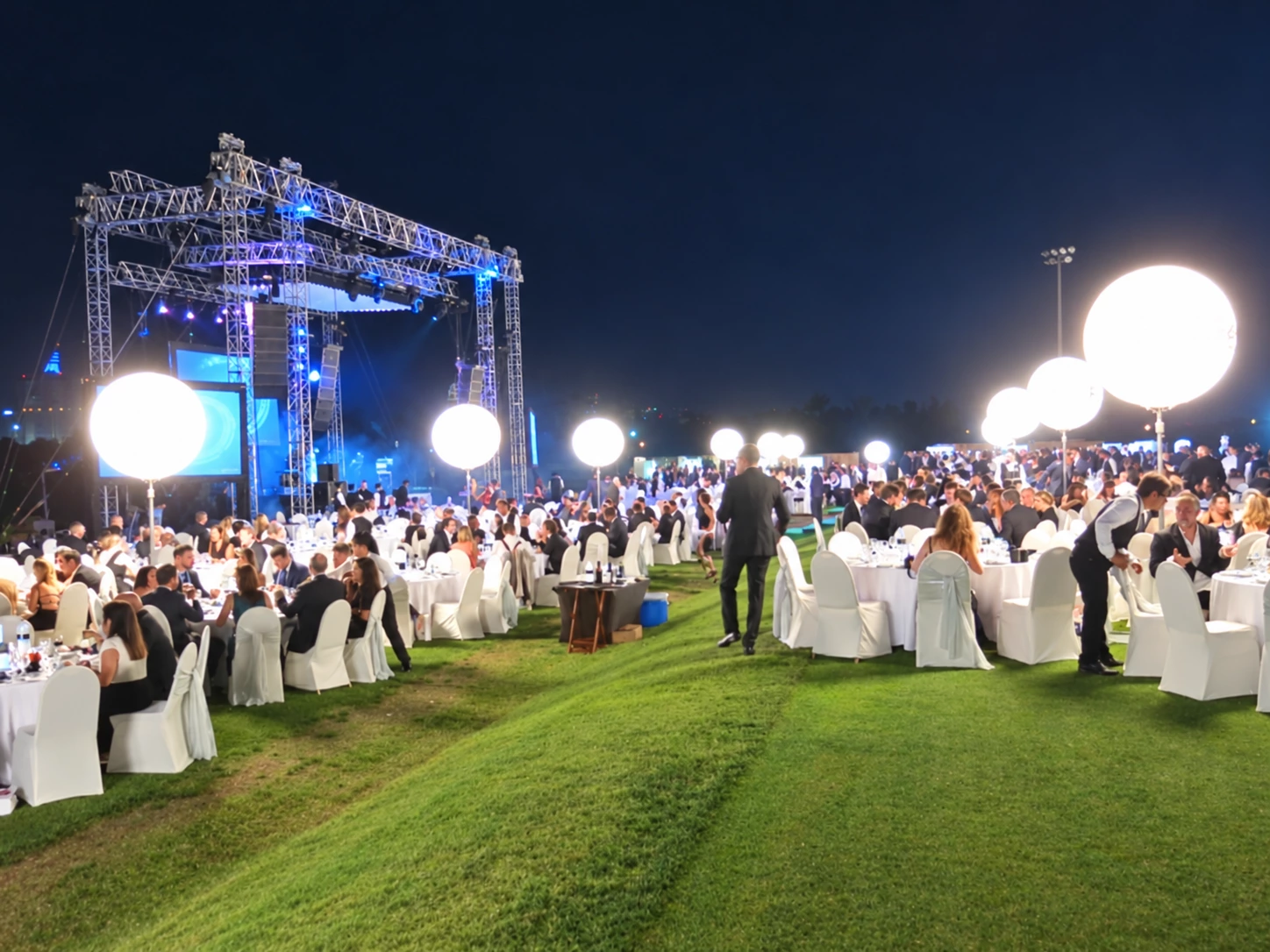

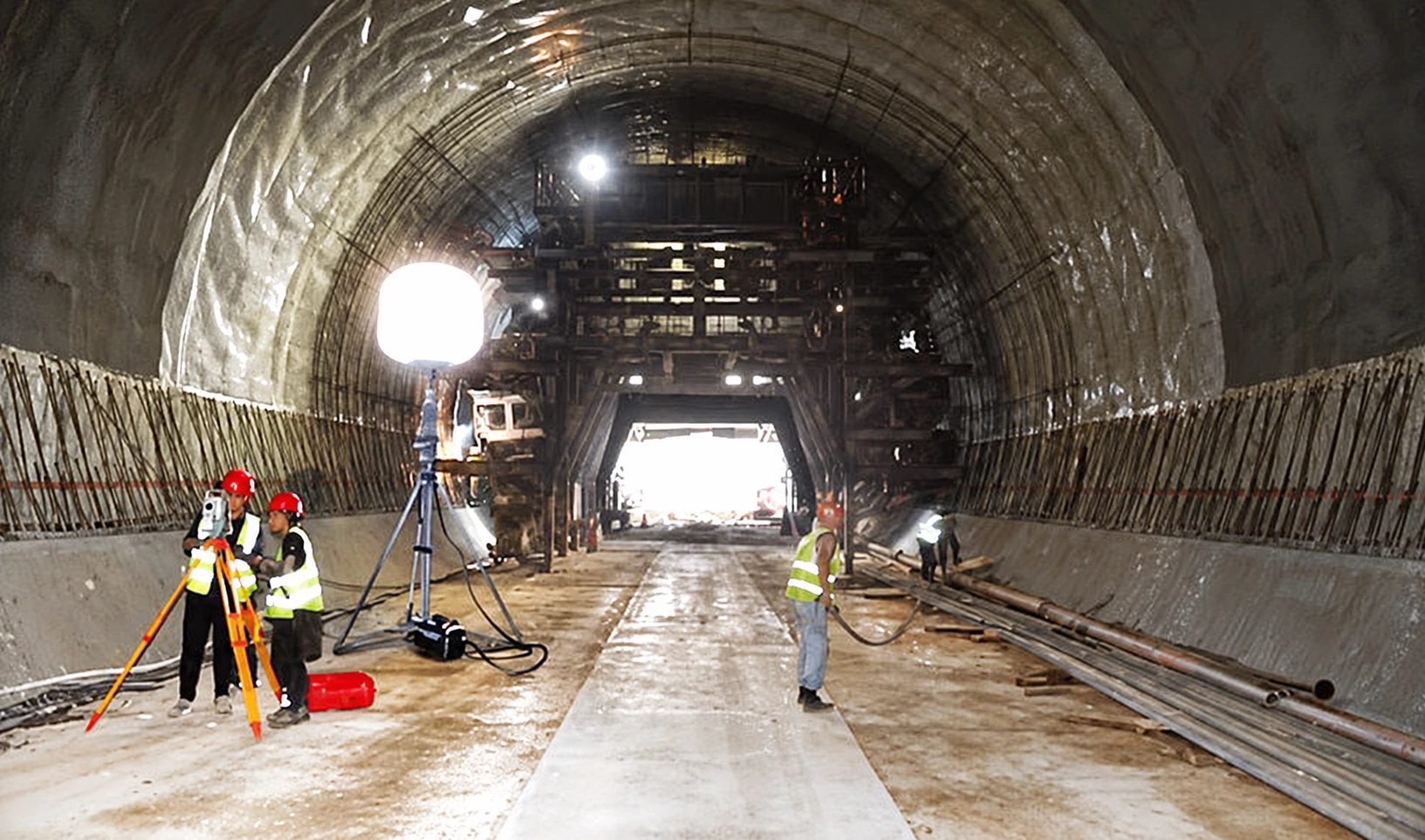

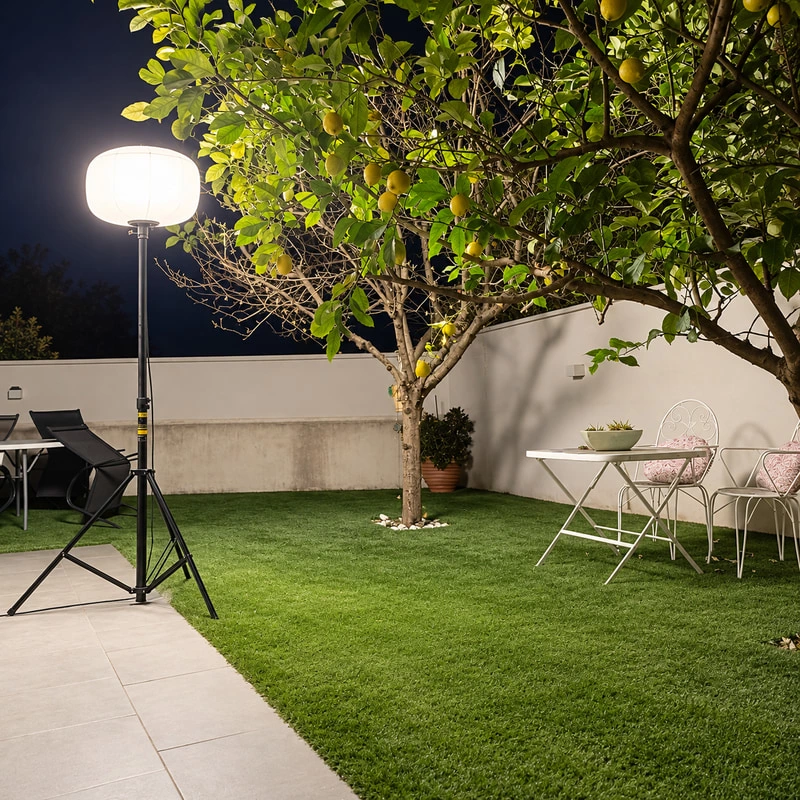

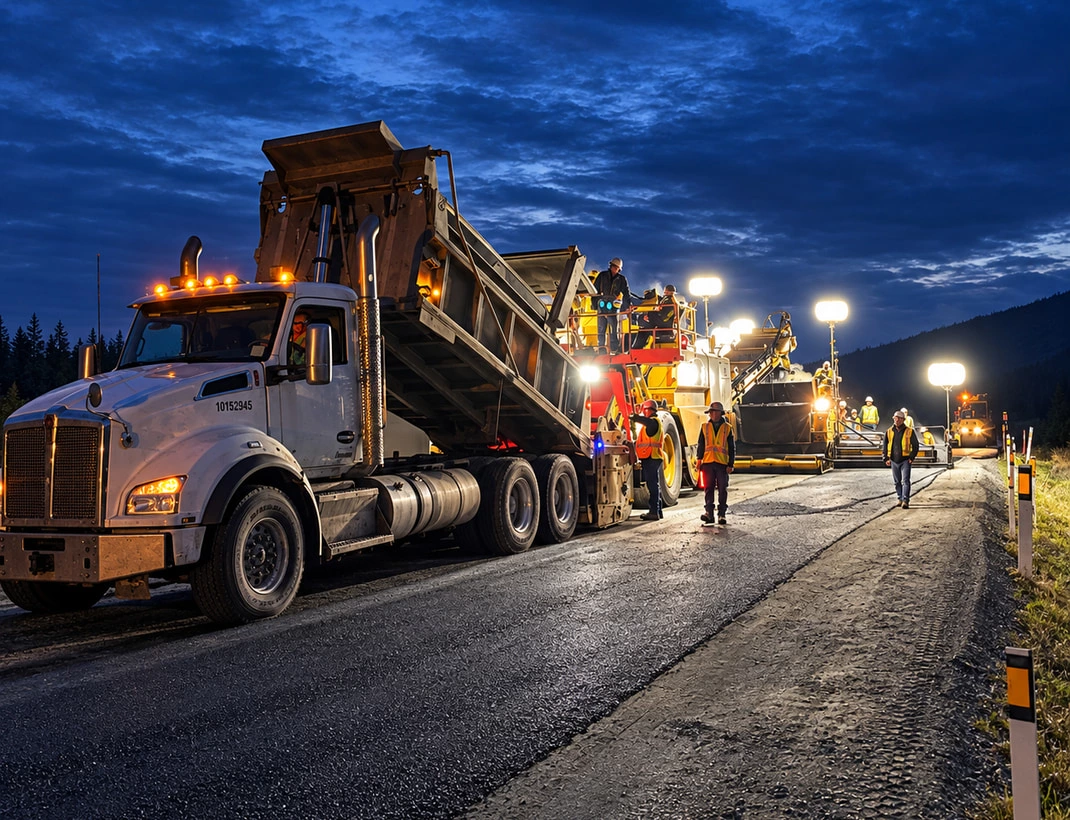

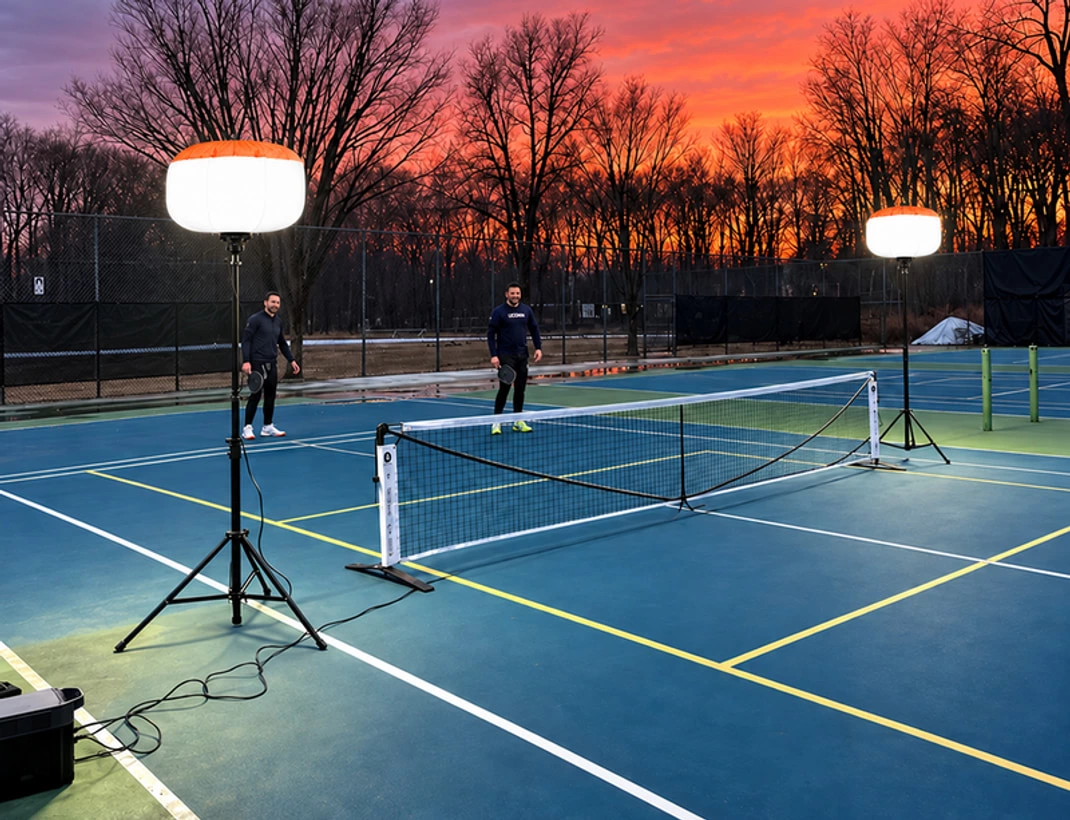

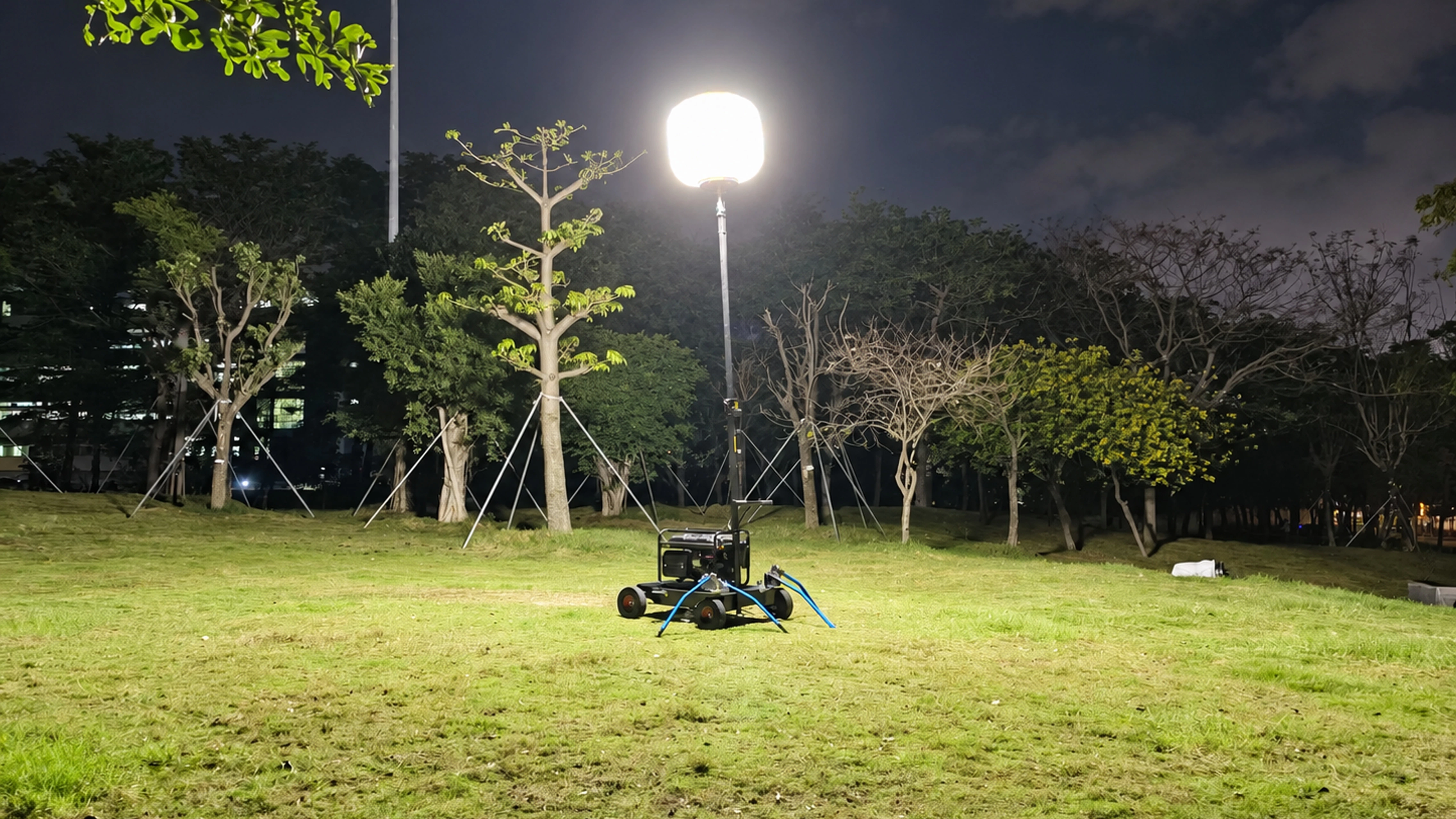

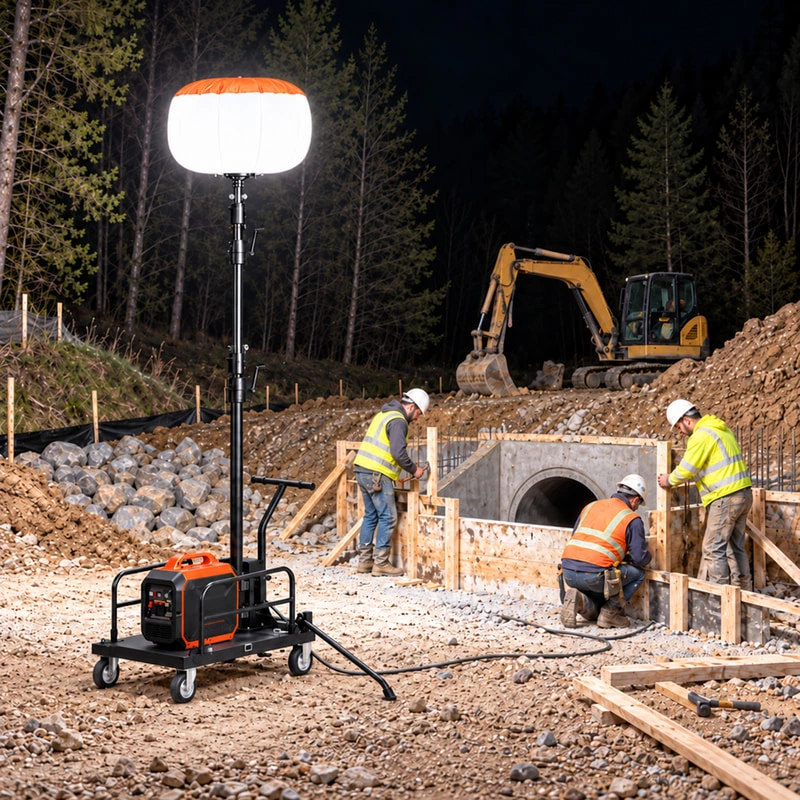

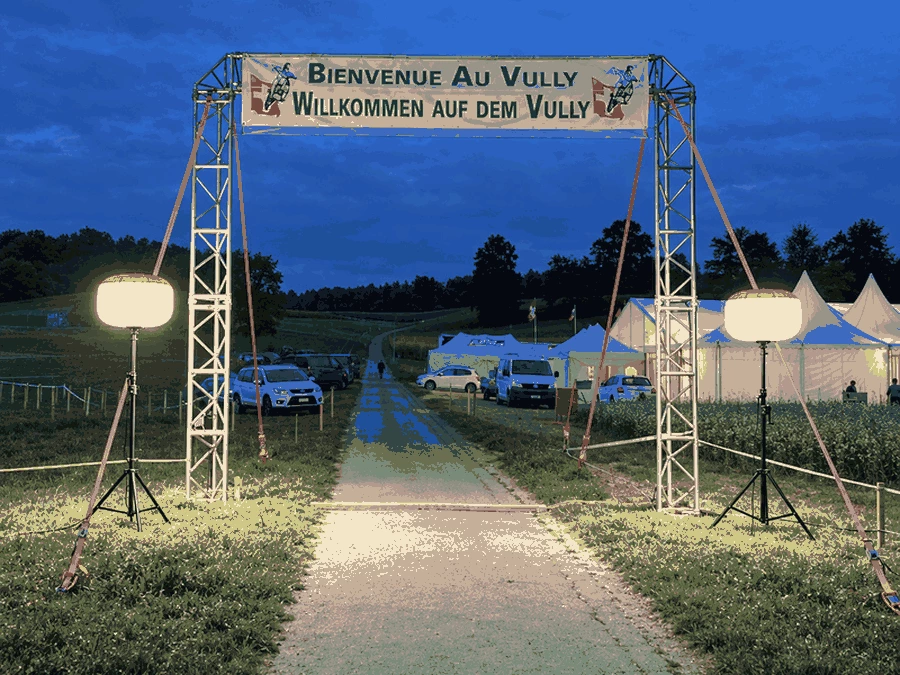

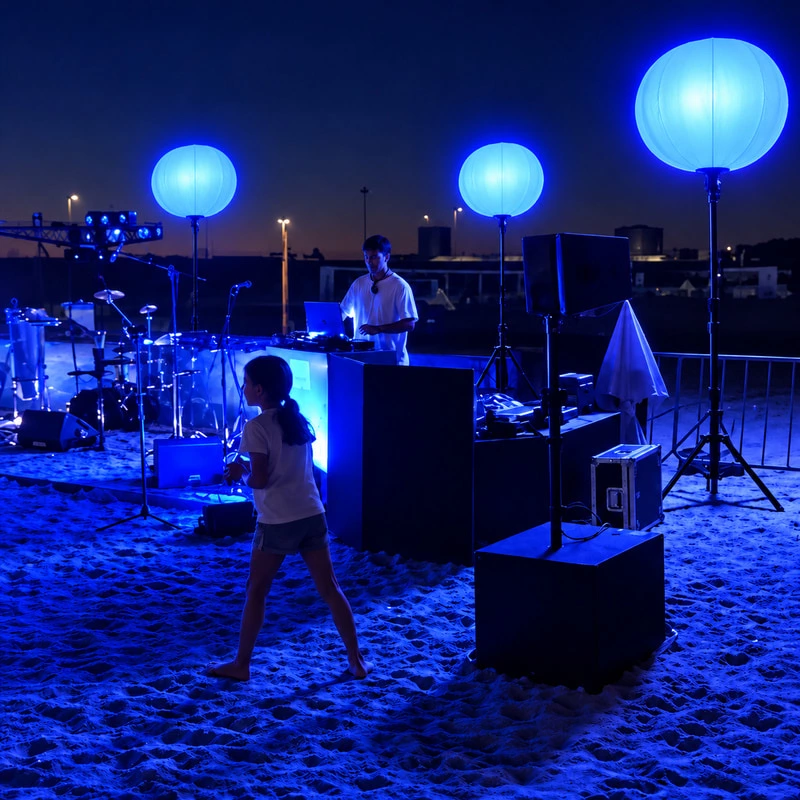

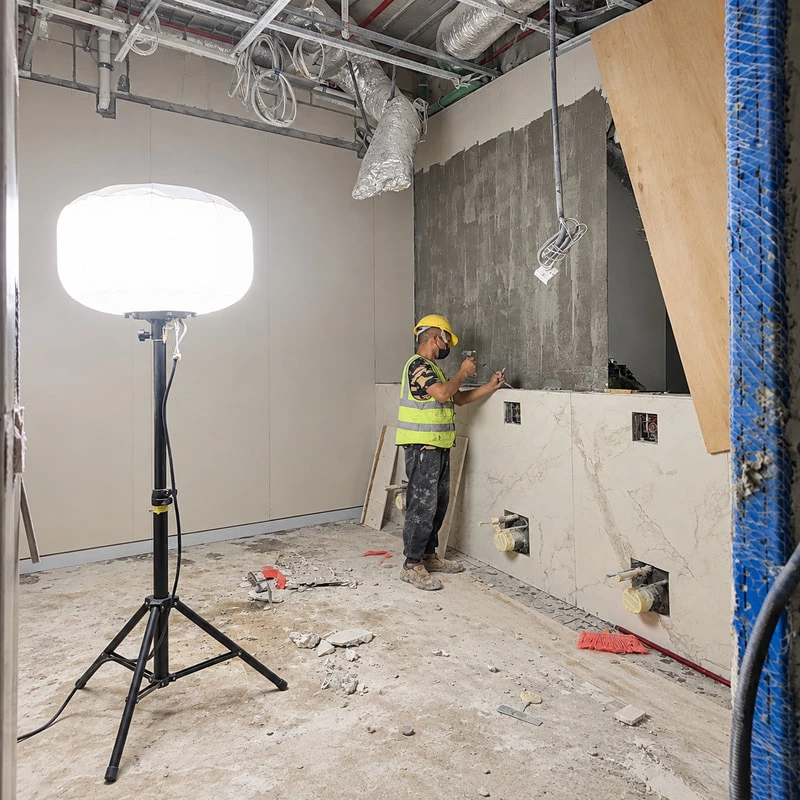

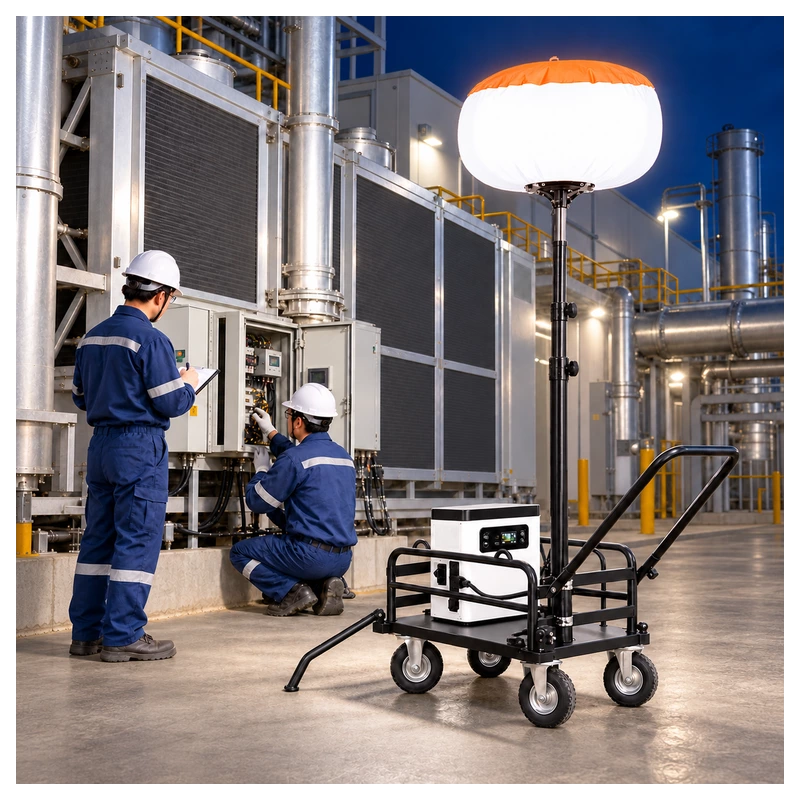

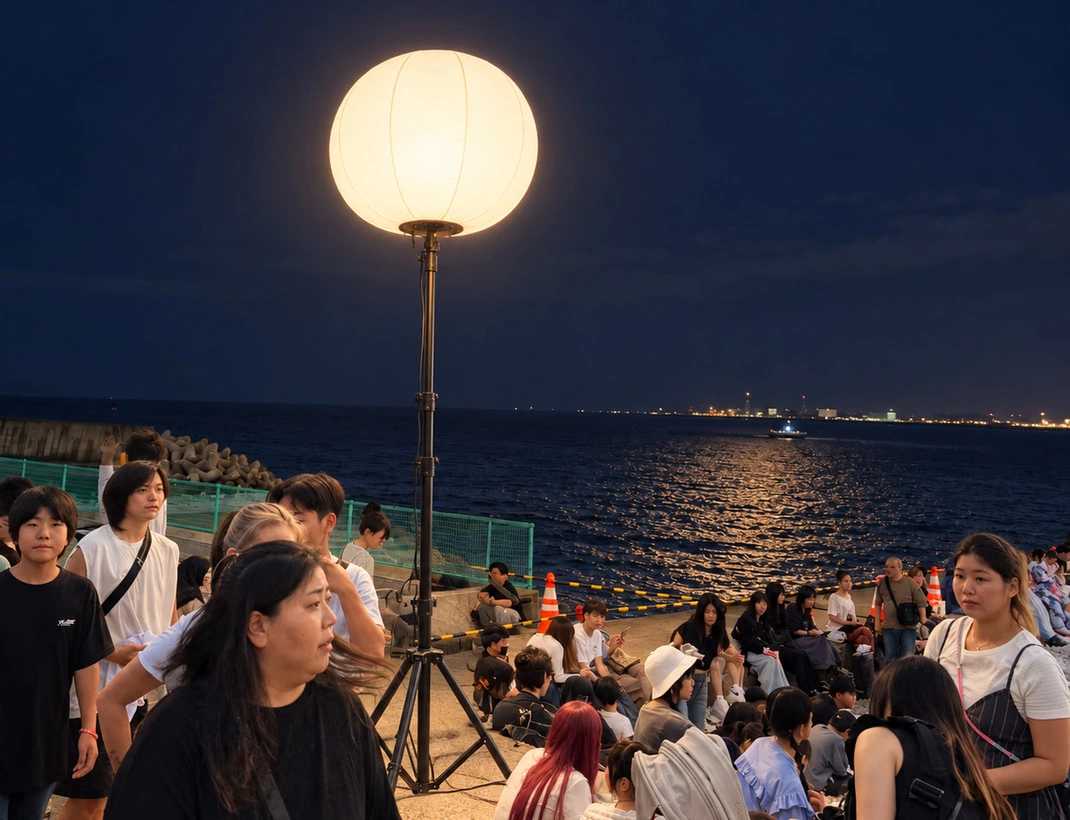

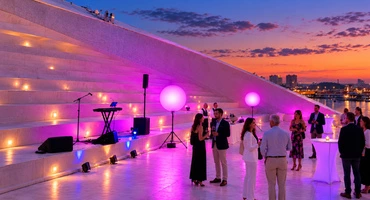

Explore real project photos featuring our tripod balloon lights, mobile lighting towers, RGBW event lights and portable LED floodlights. See how different configurations are installed and used on site, with a closer look at the equipment, surroundings and lighting effects.

FAQ

Buying FAQ

Common questions about this series. Still unsure? Talk to our engineer and we will match a model to your site.

No minimum order quantity

No MOQ

Start with just one unit
Fast dispatch

Ships As Early
As Today*

Selected in-stock models only
Local plug options

Local Plug
Options

Plugs to suit your country
OEM and ODM design

OEM/ODM Design

Custom designs for your brand

* Dispatch timing depends on stock, quantity, configuration and payment confirmation. Please contact us to confirm.

01

Do Cart-S, Cart-M and Cart-L fit the same balloon lights?

Yes — the three trolleys share the same mounting interface and are designed to carry our LED balloon light heads. Cart-S suits compact setups, Cart-M covers standard sites and Cart-L handles higher-power models. Contact us with your light model and we will confirm the matching cart.

02

What makes a mobile balloon light tower different from a tripod model?

The mobile tower mounts the balloon light on a wheeled cart frame, so the complete unit — balloon, mast and power connection — moves together. A single operator can roll it between zones without lifting or re-rigging, which makes it faster for multi-location sites.

03

Can one operator move and set up the mobile tower alone?

Yes. The cart frame and foldable mast are designed for one-person operation: roll into position, raise the mast, connect power and switch on. Setup typically takes minutes, not hours.

04

What power options are available for the mobile tower?

The mobile tower accepts standard AC input and can run from mains or a generator. Tell us your site power conditions and target coverage, and our engineers will recommend the right model and configuration.

05

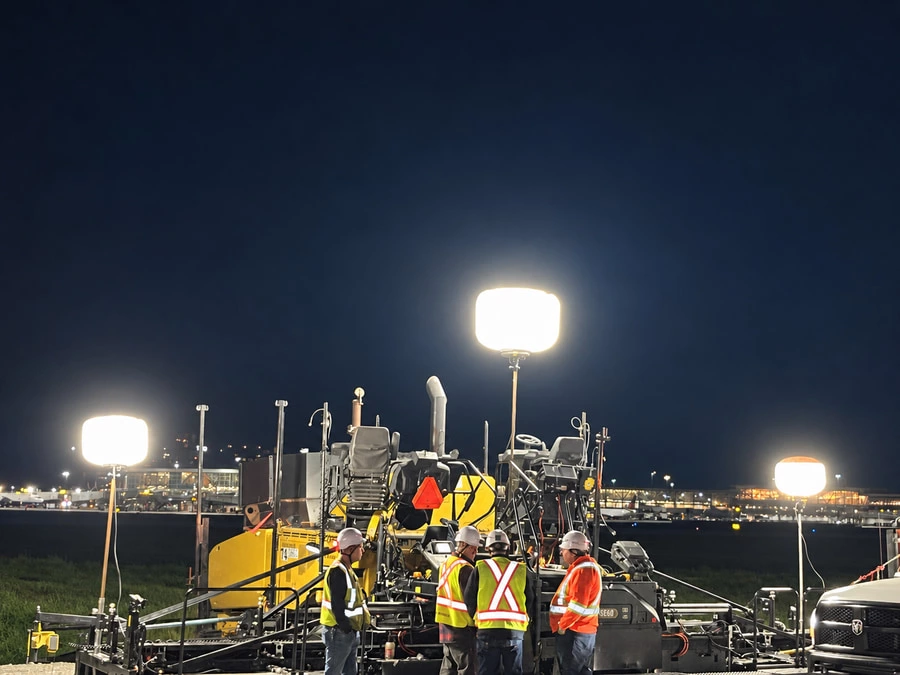

Is the mobile tower suitable for road construction and emergency work?

Yes. It is built for night roadworks, bridge and tunnel maintenance, emergency response and temporary command areas. The 360° diffused light spreads even illumination without harsh shadows, and the low-noise design suits night operations.

06

How long does it take to set up the light?

The foldable cart and mast are designed for quick deployment — raise, secure, connect and switch on in minutes. No tools are required for the standard setup.

07

Can it work with generator power?

Yes, the mobile tower runs on standard AC and is compatible with site generators. If you need a specific voltage or plug configuration, customization is available.

08

What warranty and support do you provide?

A five-year warranty is available subject to the final warranty terms, covered components and operating conditions. Our team provides spare parts, technical guidance and after-sales support for distributors and project buyers.
