Smart Air Seires • Tripod Lighting

Tripod LED Balloon Light Towers

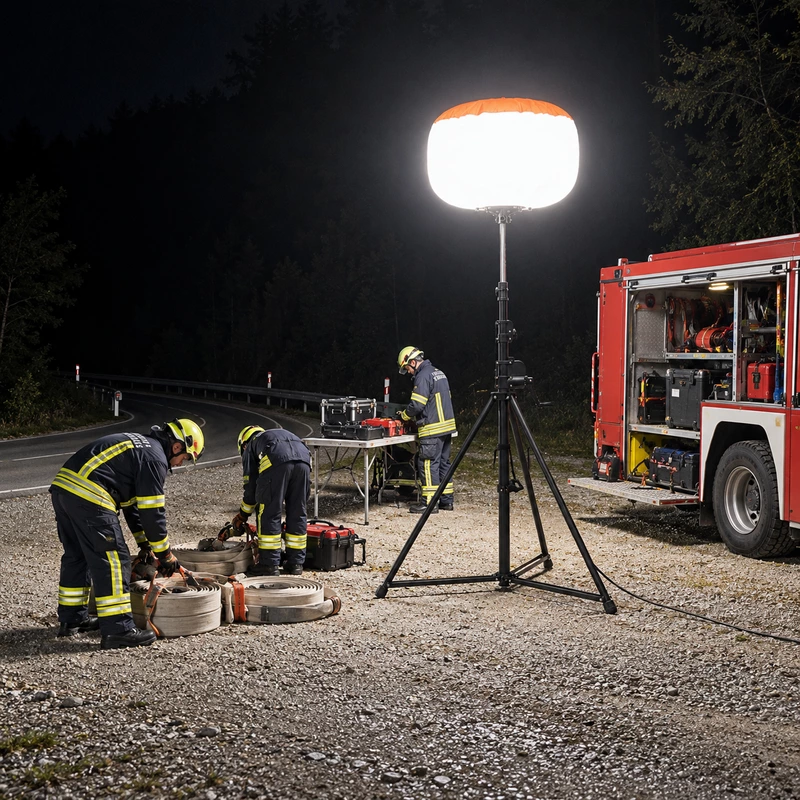

For roadwork, construction, renovation and emergency rescue.

Built-in dimming for adjustable brightness.

Safety pin and locking screws for secure mounting.

Removable filter helps keep dust and insects out.

Aluminum construction with modular LED panels.

Standard Options & Custom Configurations

60-1400 W

Power Range

9,600-224,000 Im

Light Output

360°

Diffused White Light

4.8m

Max. Tripod Height

≈8,200m2

Max. Coverage per Light

IP54

Dust & Splash Protection

WhatsApp Inquiry
Email Inquiry
Download Catalog & Datasheets
Certifications
Internationally Certified
Ready Stock Available
Custom Options Supported
Fast Sampling Service
OEM / ODM Customization
Express Sampling Service
Product Details

Product Overview

Tripod LED Balloon Light Towers

Tripod LED Balloon Light Towers

HUIVOLT tripod LED balloon light towers combine an inflatable white-light head with an adjustable, foldable stand for temporary area lighting. The 60–1400 W series serves roadwork, construction, maintenance, emergency response, outdoor events and indoor spaces. The balloon diffuser illuminates the surrounding area, while the portable tripod allows the complete lighting system to be repositioned as site requirements change.

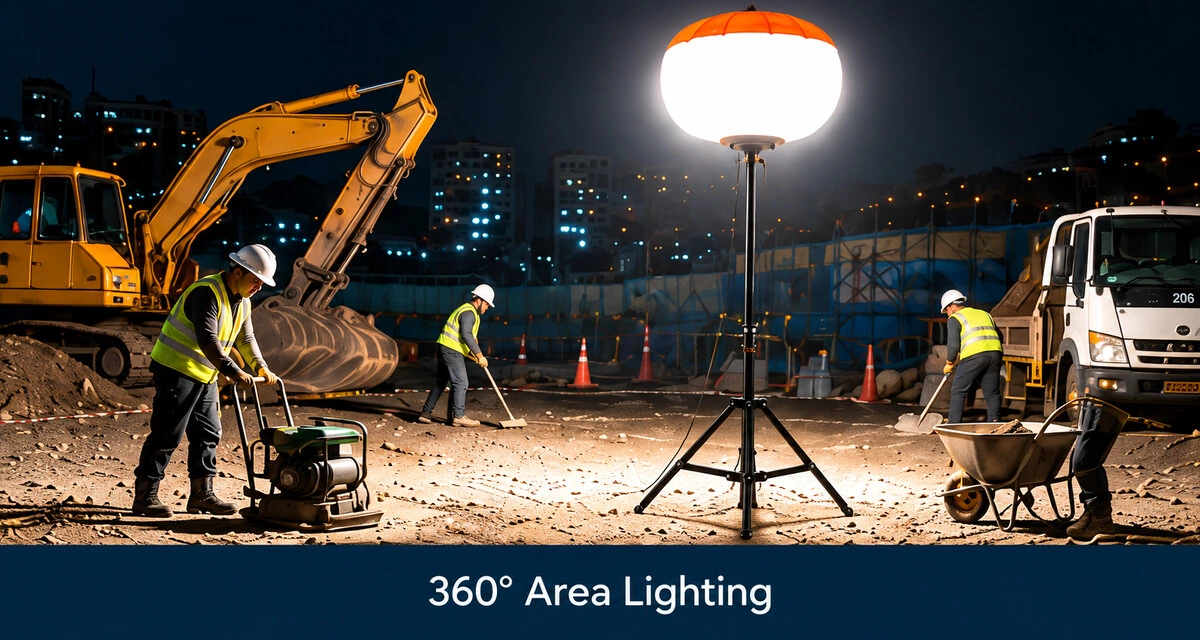

LED Output and 360° Light Distribution

With an efficacy of 160 lm/W, the LED light head delivers efficient illumination through a balloon diffuser that spreads white light in all directions. The diffused output helps reduce harsh glare around people and equipment. Dimmable brightness allows the light level to be adjusted for different tasks and surroundings.

Telescopic Tripod Height up to 4.8 m

Tripod options extend up to 4.8 m, elevating the balloon light to illuminate a wider surrounding area. The telescopic mast adjusts to the required mounting height, while the three-leg base provides freestanding support. Actual coverage depends on lamp power, mounting height, site layout and the light level required for the task.

IP54 Protection and Flame-Retardant Cover

IP54 protection helps the lamp withstand dust and splashing water during outdoor use. The balloon cover is made from flame-retardant, tear-resistant fabric, and a removable filter helps keep dust and insects out. Quiet lamp operation supports communication in working areas, temporary event spaces and other shared environments.

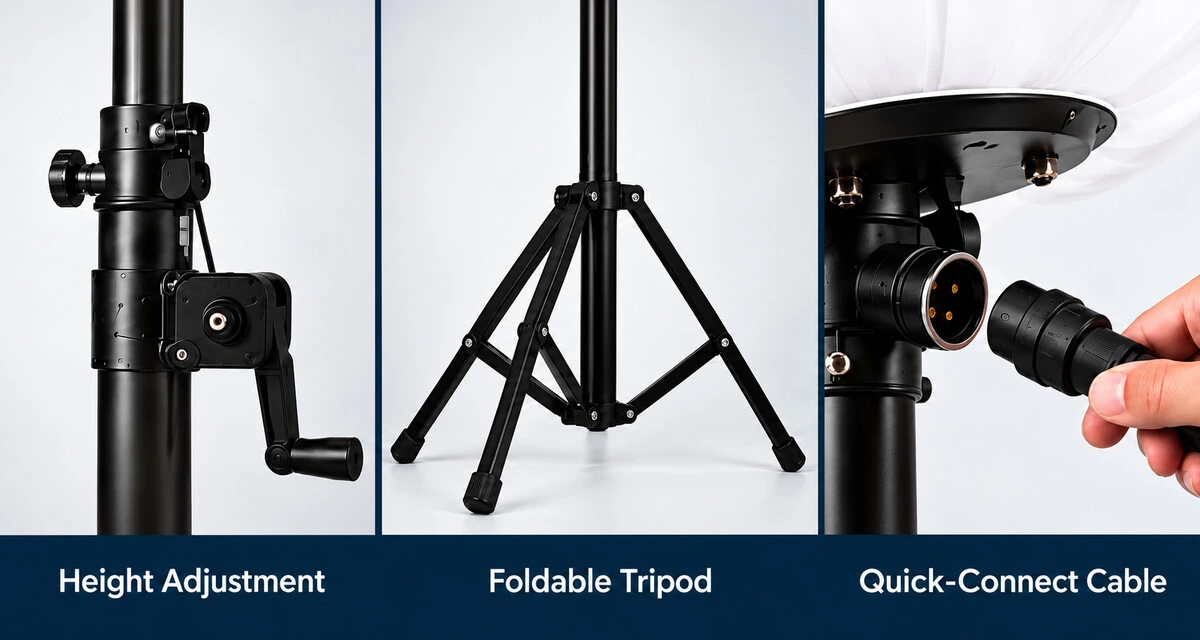

Quick-Connect Power and Foldable Transport

The lighting system is set up by unfolding and securing the tripod, mounting the light head and connecting power for inflation and illumination. A quick-connect power cable detaches from the lamp for convenient connection, handling and packing. The retractable mast and folding legs make the system practical to transport and reuse across different sites.

Power Supply Options and OEM/ODM Support

The tripod balloon light can operate from mains electricity or a compatible portable power station or generator matched to the selected model. Lamp power, tripod height and accessories can be selected for different applications. HUIVOLT offers custom balloon branding and packaging for project buyers and distributors, with a five-year warranty on the LED balloon lights.

Air Series

LED Balloon Light Specifications by Wattage

Choose the wattage you need, then compare inflated balloon dimensions, light output, weight and input voltage across all models.

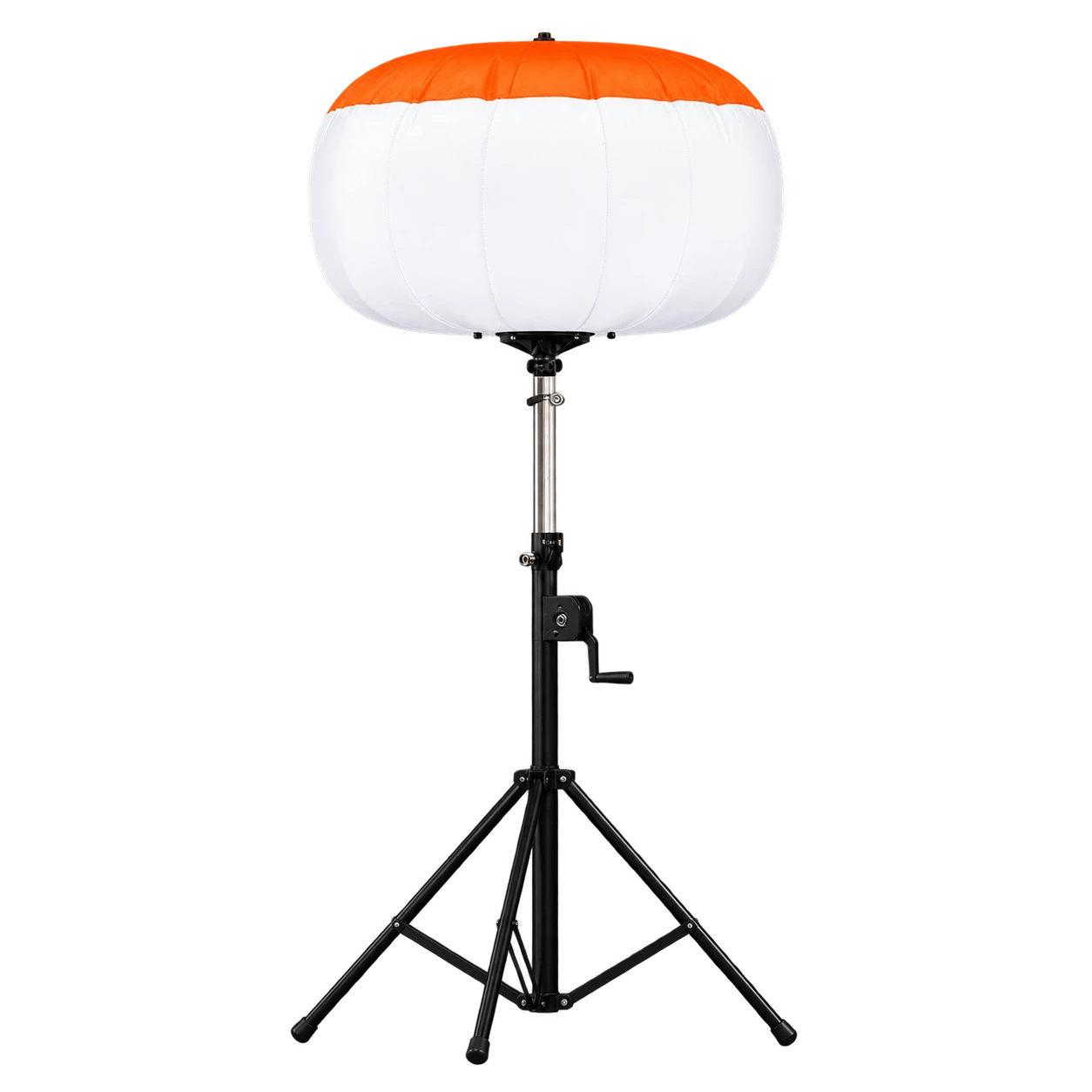

Air-XS

Air-XS

60 / 150 / 240 W
MODEL HV-BL-60W HV-BL-150W HV-BL-240W
Light output (lm) 9,600 24,000 38,400
Max. coverage (m²)* 452 908 1,385
Head weight (kg) 1.9 2.1 4.2
Inflated dimensions
(Ø × H, cm)		 40 × 25 40 × 25 52 × 35
Input voltage options AC 100–277 V or DC 12–48 V
Color temperature 5000 K
Ingress protection IP54
Dimming No
Insect & dust filter No No Yes
Air-s

Air-s

320W
MODEL HV-BL-320W
Light output (lm) 51,200
Max. coverage (m²)* 1,521
Head weight (kg) 6.3
Inflated dimensions
(Ø × H, cm)		 60 × 38
Input voltage options AC 100–277 V or DC 12–48 V
Color temperature 5000 K
Ingress protection IP54
Dimming 3-Step
Insect & dust filter Yes
Air-M

Air-M

500/600W
MODEL HV-BL-500W HV-BL-600W
Light output (lm) 80,000 96,000
Max. coverage (m²)* 3,632 3,848
Head weight (kg) 7.9 8.4
Inflated dimensions
(Ø × H, cm)		 64 × 39
Input voltage options AC 100–277 V or DC 12–48 V AC 100–277 V
Color temperature 5000 K
Ingress protection IP54
Dimming 3-Step
Insect & dust filter Yes
Air-L

Air-L

700/800W
MODEL HV-BL-700W HV-BL-800W
Light output (lm) 112,000 128,000
Max. coverage (m²)* 4,536 5,281
Head weight (kg) 9.4 9.7
Inflated dimensions
(Ø × H, cm)		 83 × 49
Input voltage options AC 100–277 V
Color temperature 5000 K
Ingress protection IP54
Dimming 3-Step
Insect & dust filter Yes
Air-XL

Air-XL

1000 / 1200 W
MODEL HV-BL-1000W HV-BL-1200W
Light output (lm) 165,000 192,000
Max. coverage (m²)* 6,362 7,238
Head weight (kg) 11.4 11.3
Inflated dimensions
(Ø × H, cm)		 100 × 56
Input voltage options AC 100–277 V
Color temperature 5000 K
Ingress protection IP54
Dimming 3-Step
Insect & dust filter Yes
Air-MAX

Air-MAX

Air-MAX
MODEL HV-BL-1400W
Light output (lm) 224,000
Max. coverage (m²)* 8,171
Head weight (kg) 12.8
Inflated dimensions
(Ø × H, cm)		 100 × 66
Input voltage options AC 100–277 V
Color temperature 5000 K
Ingress protection IP54
Dimming 3-Step
Insect & dust filter Yes
Product Specifications

Tripod LED Flood Light Specifications

Compare modular floodlight specifications and tripod height and load options.

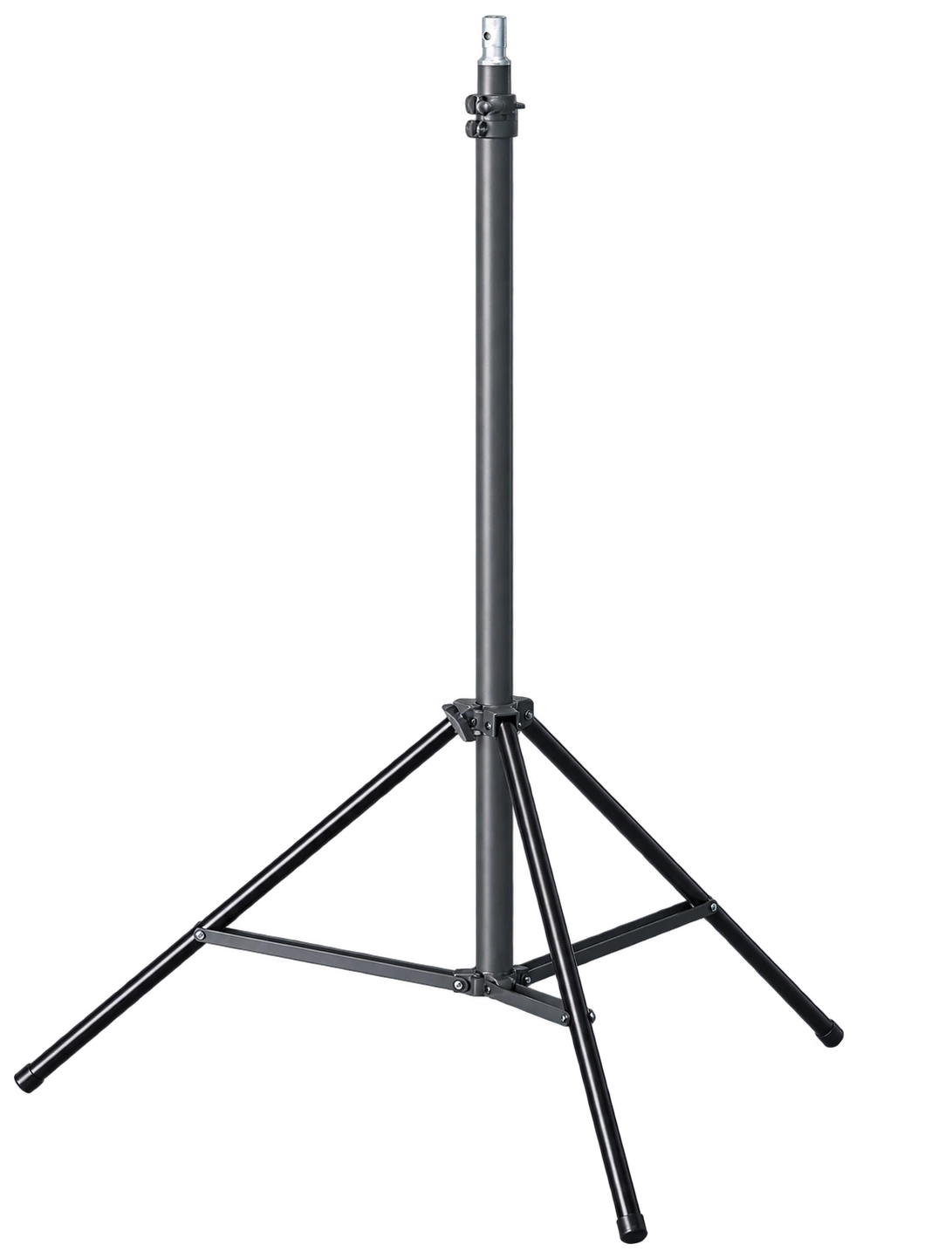

Tripod-S

Tripod-S
Recommended Lamp Power
60–320 W
Max. Height Max. Load
2,000 mm 20 kg
Min. height 1,070 mm
Net weight 4 kg
Mast sections 2
Material Steel + aluminum
Lifting Manual lift
Lowering Air-cushion damping

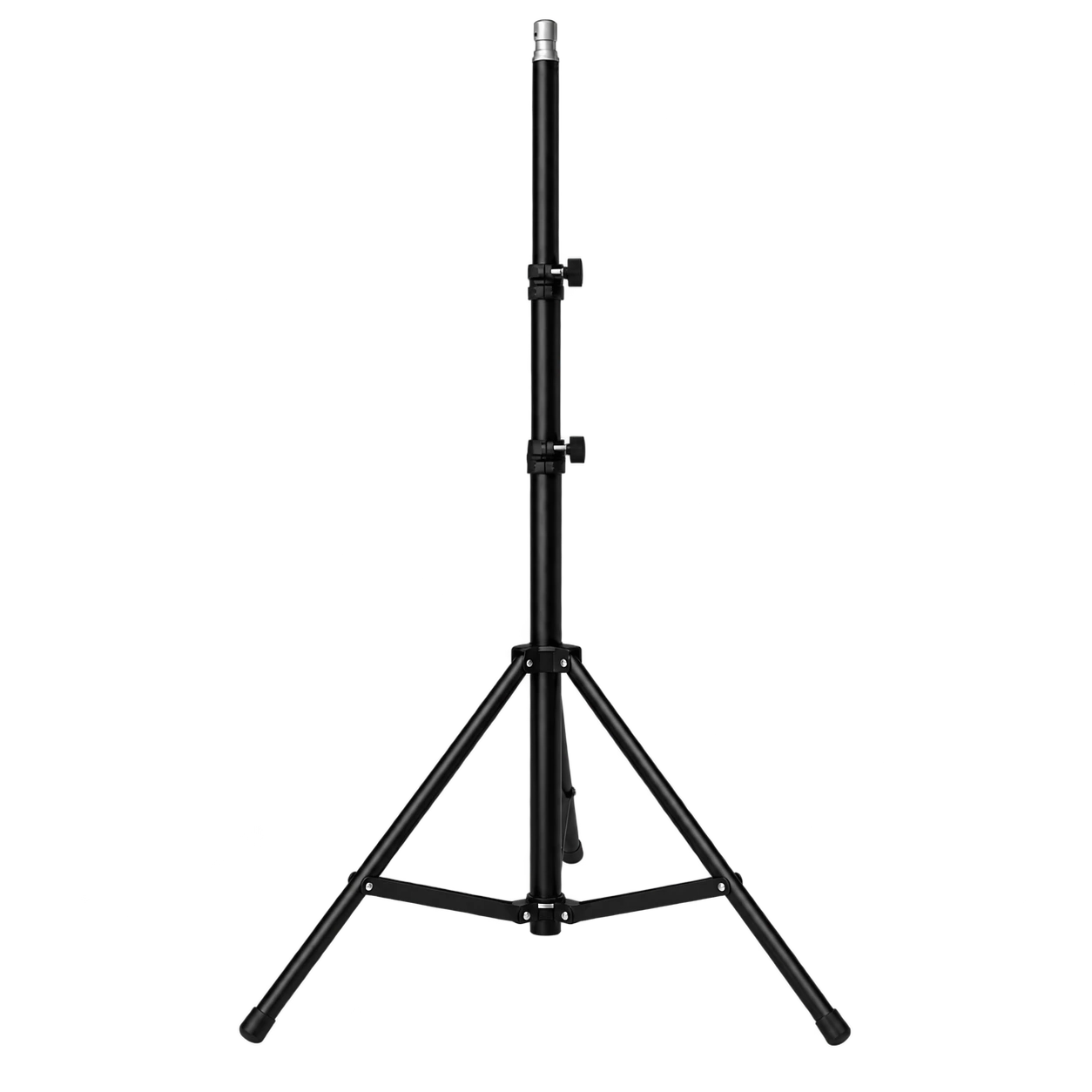

Tripod-N

Tripod-N
Recommended Lamp Power
320–500 W
Max. Height Max. Load
2,800 mm 20 kg
Min. height 1,070 mm
Net weight 4.7 kg
Mast sections 3
Material Steel + aluminum
Lifting Manual lift
Lowering Air-cushion damping

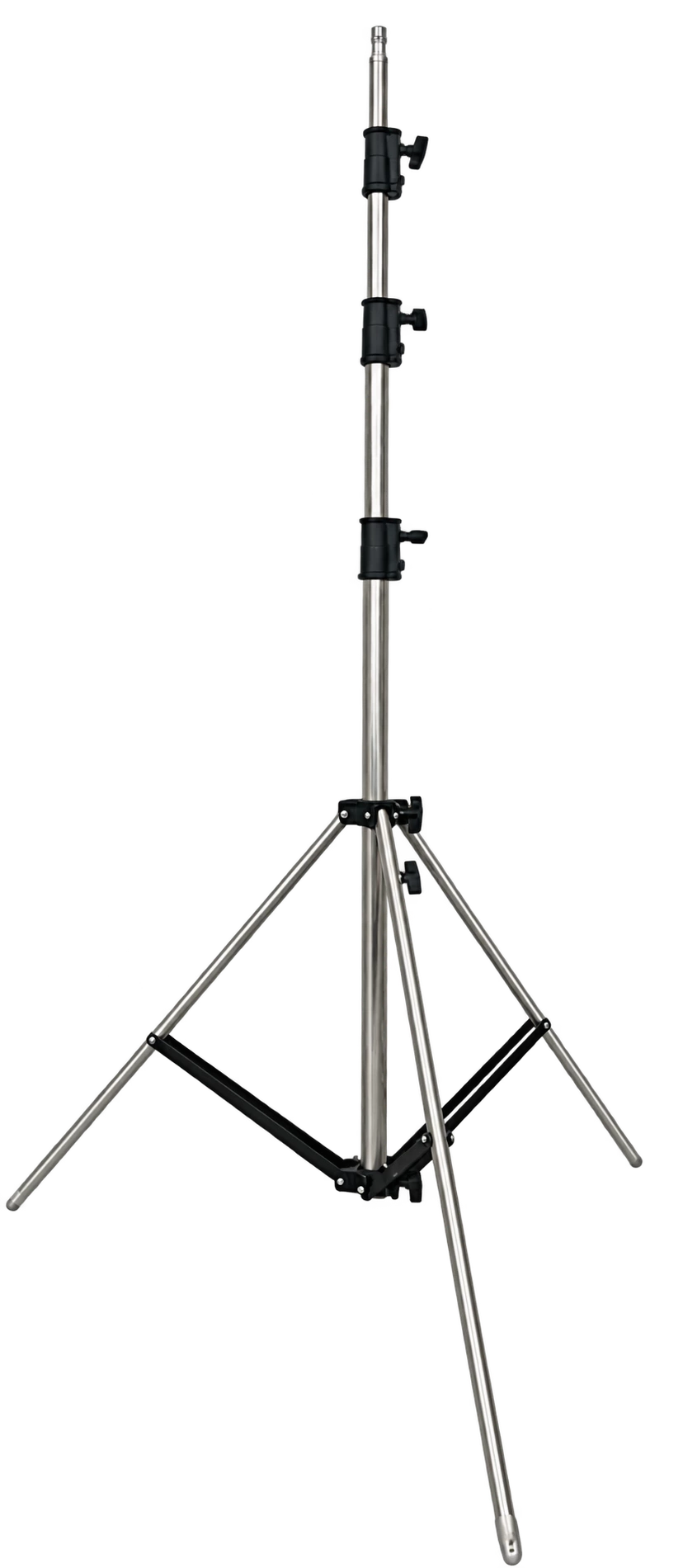

Tripod-H

Tripod-H
Recommended Lamp Power
500–800 W
Max. Height Max. Load
4,800 mm 40 kg
Min. height 1,680 mm
Net weight 12.4 kg
Mast sections 4
Material Stainless steel + aluminum
Lifting Manual lift
Lowering Air-cushion damping

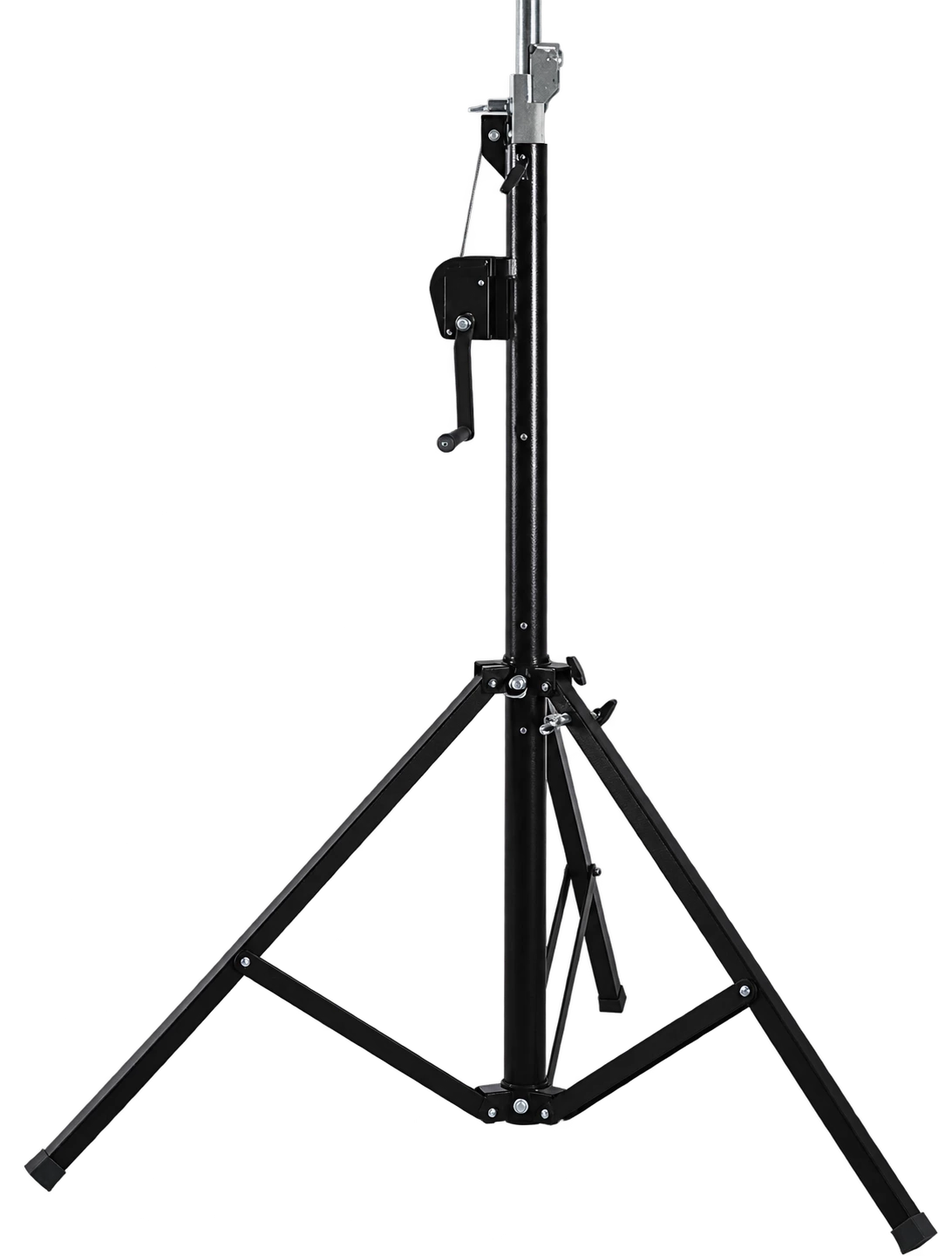

Tripod-L

Tripod-L
Recommended Lamp Power
500–1,400 W
Max. Height Max. Load
4,000 mm 80 kg
Min. height 1,700 mm
Net weight 19.2 kg
Mast sections 4
Material Steel + aluminum
Lifting Hand crank
Lowering Hand crank

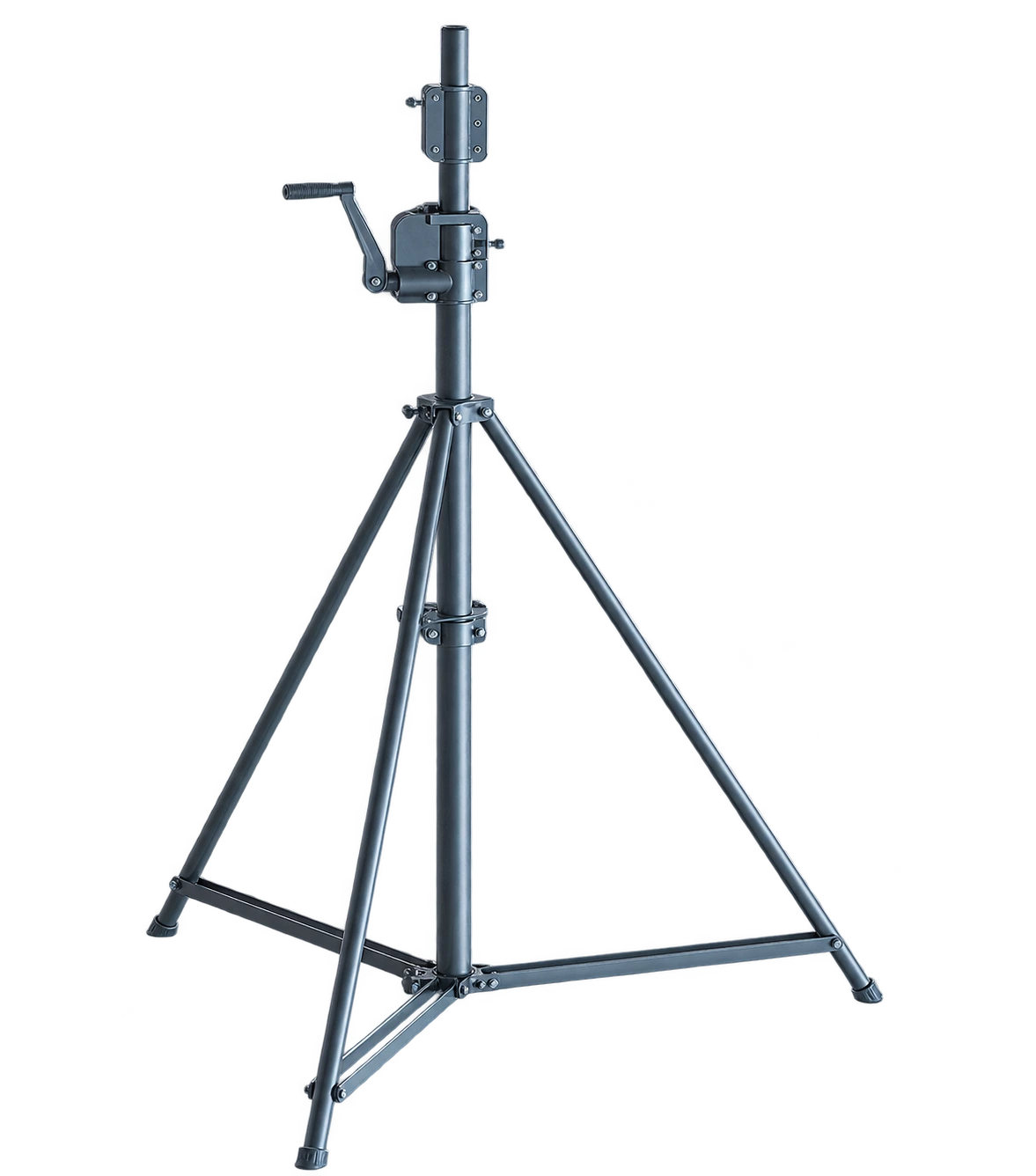

Tripod-V

Tripod-V
Recommended Lamp Power
500–1,400 W
Max. Height Max. Load
3,800 mm 80 kg
Min. height 1,880 mm
Net weight 12.9 kg
Mast sections 4
Material Stainless steel + aluminum
Lifting Hand crank
Lowering Hand crank

Need help selecting a tripod? Share your lamp model and preferred working height with us.

Stand heights exclude the lamp head. Product images are shown at different scales.

Smart Air Seires

Why Choose Tripod LED Balloon Light Towers LED Balloon Lights?

Built for construction, roadwork and emergency response.

360° Soft, Low-Glare Light

360° Soft, Low-Glare Light

Diffused light helps reduce glare and harsh shadows around the work area.

160 lm/W Efficiency

160 lm/W Efficiency

High light output per watt helps reduce power demand.

Height Up to 4.8 m

Height Up to 4.8 m

Raise the light up to 4.8 m to illuminate a wider area.

Dimmable Brightness

Dimmable Brightness

Set brightness to suit the task and surrounding light.

Fast Tripod Setup

Fast Tripod Setup

Unfold the tripod and secure the lamp for fast deployment.

Quiet Operation

Quiet Operation

Quiet operation helps crews communicate during night work.

Flame-Retardant Cover

Flame-Retardant Cover

The balloon cover is made from flame-retardant, tear-resistant fabric.

IP54 Outdoor Protection

IP54 Outdoor Protection

Dust and splash protection, plus an insect filter for demanding outdoor use.

Quick-Connect Power Cable

Quick-Connect Power Cable

Easily connect or detach the cable from the lamp using the quick-connect plug.

Portable & Reusable

Portable & Reusable

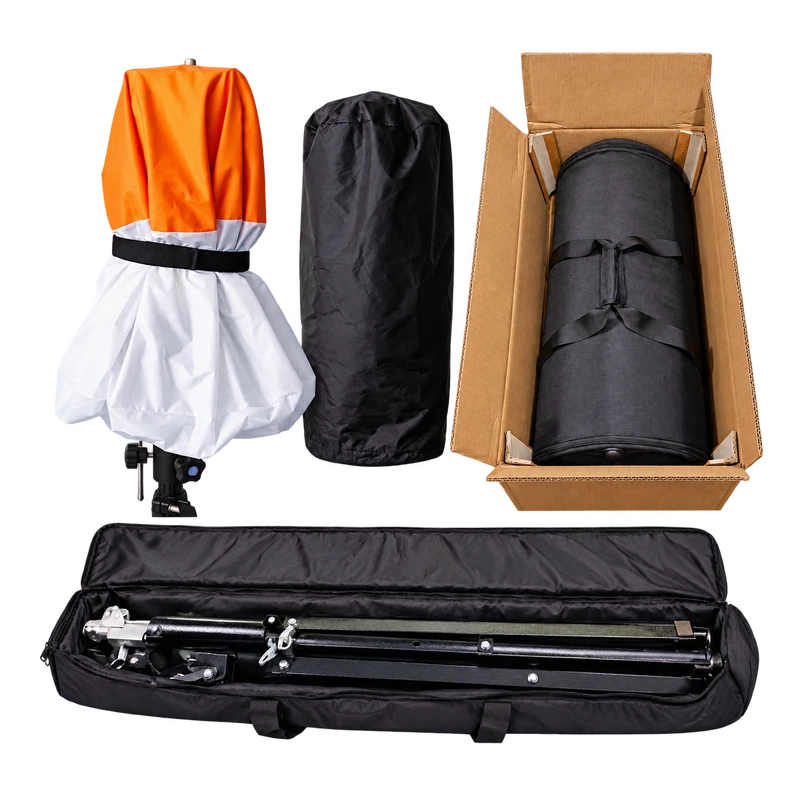

Foldable stands and carrying bags make moving between sites easier.

Quick Inflation & Lighting

Quick Inflation & Lighting

Power on to inflate the balloon and start lighting quickly.

5-Year Warranty

5-Year Warranty

Five-year product warranty for long-term peace of mind.

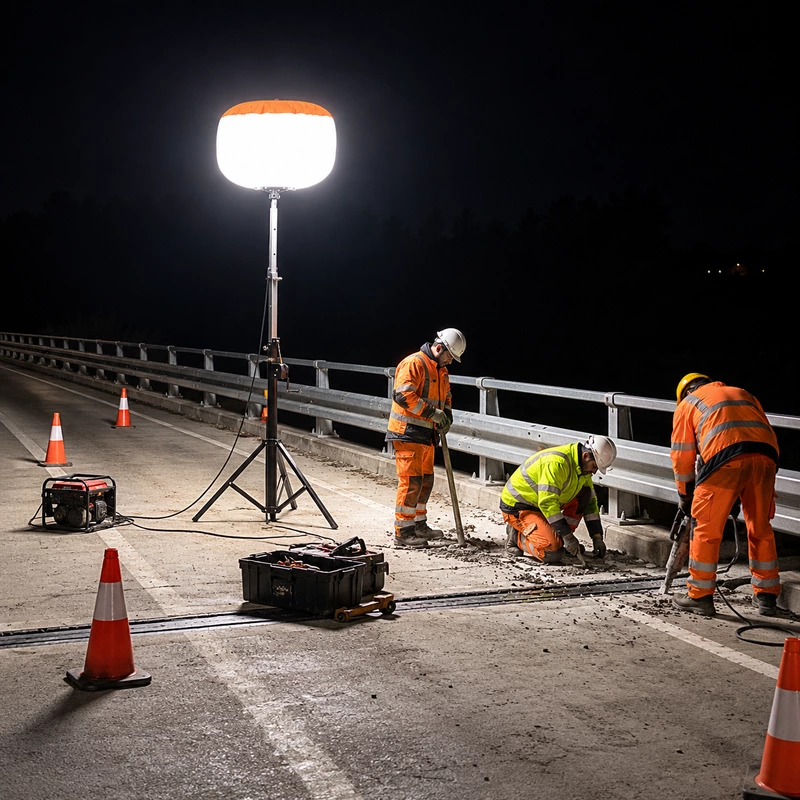

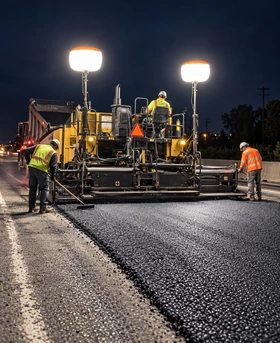

PROJECT GALLERY

HUIVOLT Lighting in Action

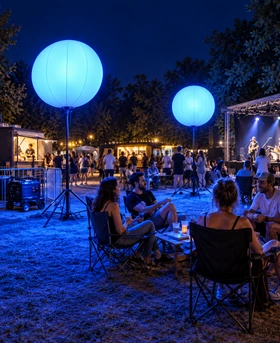

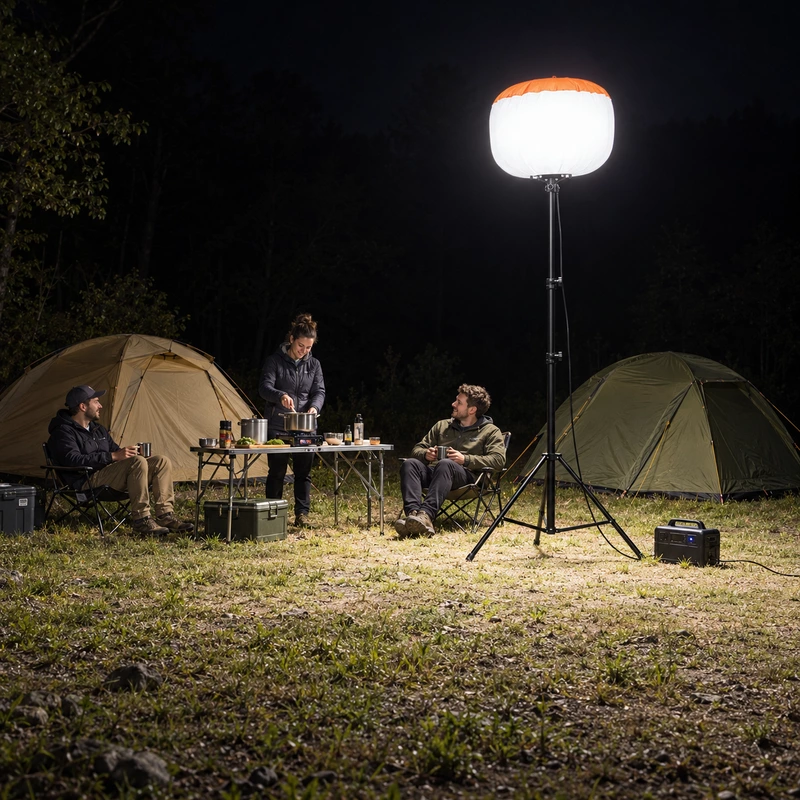

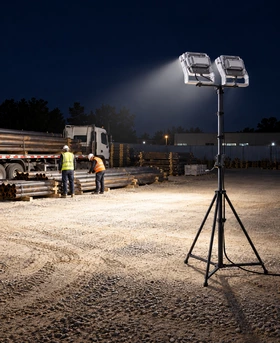

Explore real project photos featuring our tripod balloon lights, mobile lighting towers, RGBW event lights and portable LED floodlights. See how different configurations are installed and used on site, with a closer look at the equipment, surroundings and lighting effects.

FAQ

Buying FAQ

Common questions about this series. Still unsure? Talk to our engineer and we will match a model to your site.

No minimum order quantity

No MOQ

Start with just one unit
Fast dispatch

Ships As Early
As Today*

Selected in-stock models only
Local plug options

Local Plug
Options

Plugs to suit your country
OEM and ODM design

OEM/ODM Design

Custom designs for your brand

* Dispatch timing depends on stock, quantity, configuration and payment confirmation. Please contact us to confirm.

01

What warranty is provided?

A five-year warranty is available subject to the final warranty terms, covered components and operating conditions.

02

Which Air-XS model fits my job site?

Selection depends on the work-area size, mounting height, target lux level and available power source. Send these four details to HUIVOLT and we will recommend a model, lighting layout and quotation within 24 hours.

03

How fast can one person set up the tripod light?

The self-inflating balloon head and foldable tripod are designed for fast one-person deployment — no tools required. The exact setup time depends on the model and site conditions.

04

Can the Air-XS be used outdoors?

Yes. The Air-XS is rated IP54 for protection against dust ingress and splashing water. Always follow the operating limits and site-safety instructions for heavy rain and wind.

05

Can it run from AC, DC or an energy-storage system?

The Air-XS accepts AC 100-277V, 50/60Hz. DC and energy-storage configurations depend on the model and project — share the output voltage and connector of your generator, battery or solar-storage system for confirmation.

06

What can be customized on this series?

Available options include cover printing, cover colors, CCT or RGB configurations, cable lengths, plugs, packaging and private-mold development for qualified projects.

07

How is the washable filter maintained?

Remove the quick-release filter, clean and dry it thoroughly, then reinstall it according to the maintenance instructions.
